Documents: 87DUD6MG

Datasheet

87DUD6MG | PumpPanel SZ1 | 5.5-22Amps | N12/3R | Siemens Electrical

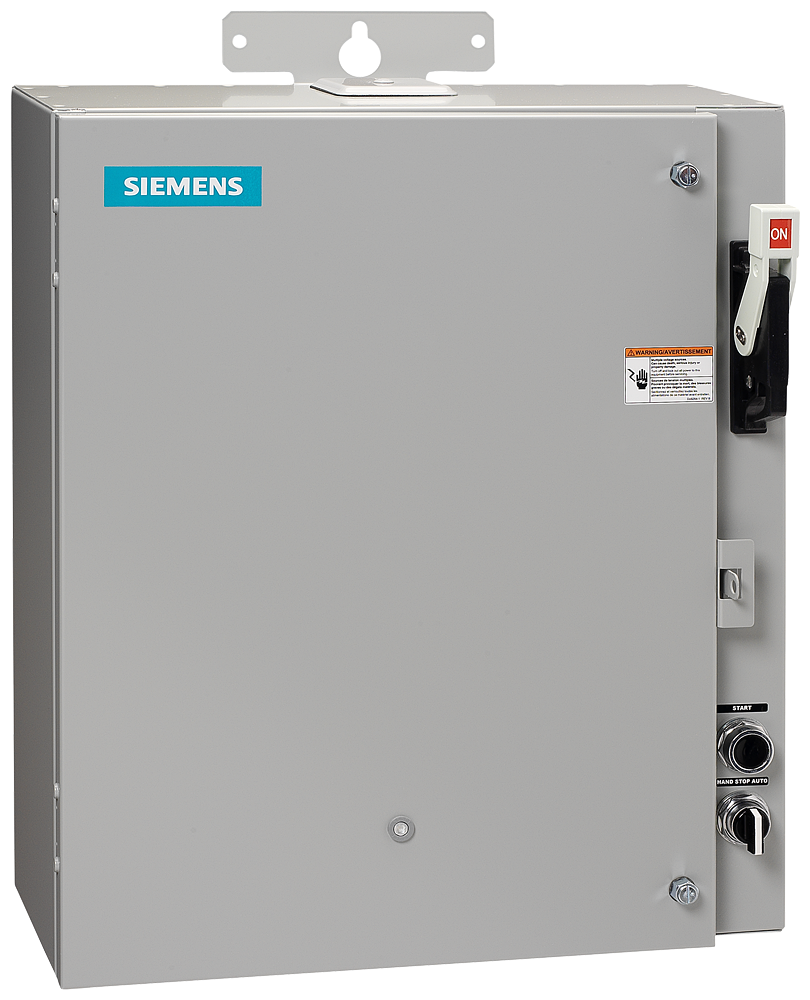

Pump control panel, Size 1, H2 Solid-state overload relay, OLR amp range 5.5-22A, 190-220/220-240V 50/60Hz coil, Standard type contactor, 25A circuit breaker, HOA Sel Sw. <(><<)>(><(>&<)><(><<)>)> Start P.B., Enclosure NEMA type 3/3R, Weather proof outdoor use

Brand: Siemens ElectricalSKU: 87DUD6MG

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 87DUD6MG

Jump to: Overview & Specifications Reviews

Overview Details for 87DUD6MG

Specifications

Item Number	87DUD6MG
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
External reset possible	TRUE
freeship	upsground
Kind of motor starter	Other
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	5.5 A
Rated control supply voltage Us at AC 50HZ	190 V
Rated control supply voltage Us at AC 60HZ	220 V
Rated control supply voltage Us at DC	0 V
Release class	Other
Voltage type for actuating	AC
Weight	47 LB
With short-circuit release	TRUE
With transformer	FALSE
