Documents: 87DUB6FC

Datasheet

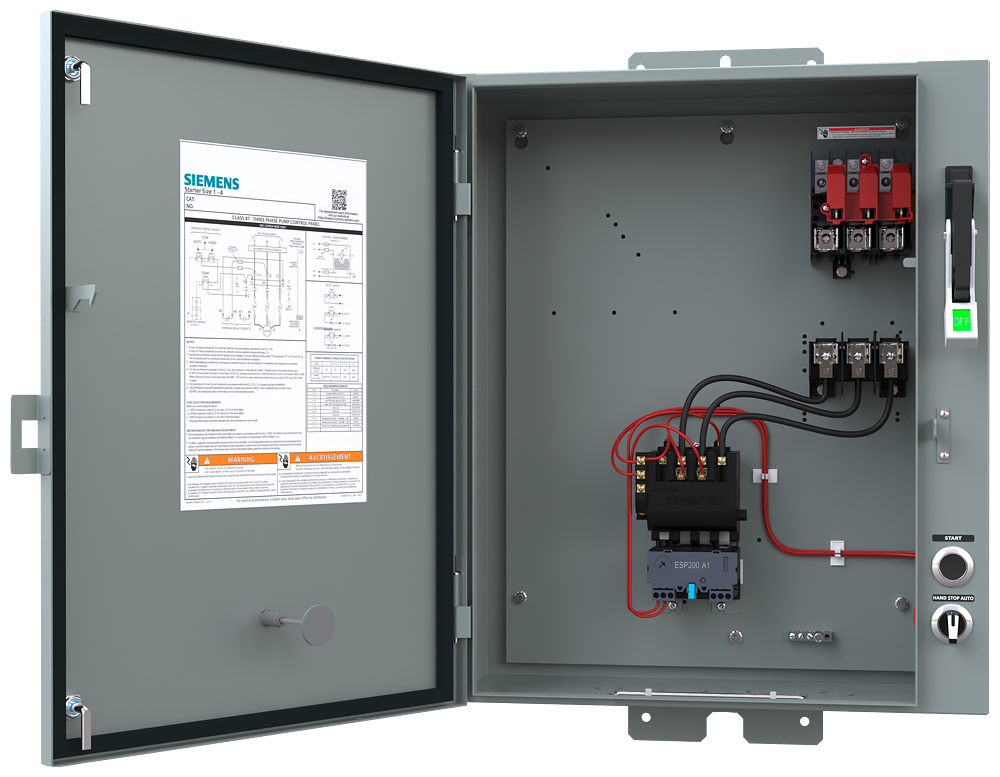

87DUB6FC | PumpPanel SZ1 | 0.75-3.4Amps | N12/3R | Siemens Electrical

Pump control panel, Size 1, H2 Solid-state overload relay, OLR amp range 0.75-3.4A, 220-240/440-480VAC 60Hz coil, Standard type contactor, 30A fusible disconnect, 30A/600V fuse clip, HOA Sel Sw. <(><<)>(><(>&<)><(><<)>)> Start P.B., Enclosure NEMA type 3/3R, Weather proof outdoor use

Brand: Siemens ElectricalSKU: 87DUB6FC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 87DUB6FC

Jump to: Overview & Specifications Reviews

Overview Details for 87DUB6FC

Specifications

Item Number	87DUB6FC
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
External reset possible	TRUE
Kind of motor starter	Other
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	0.75 A
Rated control supply voltage Us at AC 50HZ	0 V
Rated control supply voltage Us at AC 60HZ	220 V
Rated control supply voltage Us at DC	0 V
Release class	Other
Voltage type for actuating	AC
Weight	47 LB
With short-circuit release	TRUE
With transformer	FALSE
