3RV29224CV1 | UNDERVOLTAGE RELEASE AC 480V/60HZ 2NO | Siemens Electrical

UNDERVOLTAGE RELEASE, AC 415V/50HZ, AC 480V/60HZ, WITH LEADING AUX. CONTACTS 2NO, WITH RING CABLE LUG CONNECTION, FOR CIRCUIT-BREAKERS, SZ S00/S0

Brand: Siemens ElectricalSKU: 3RV29224CV1

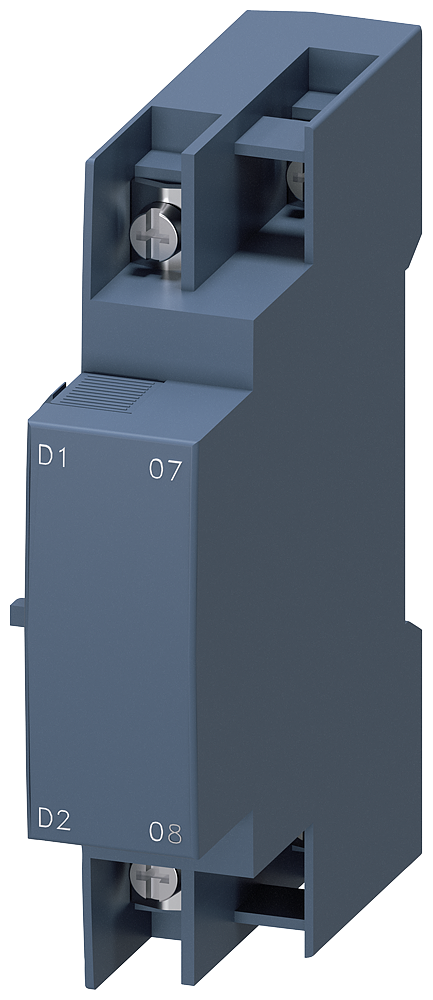

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV29224CV1

Item Number	3RV29224CV1
Brand	Siemens Electrical
Delayed	FALSE
Height	1.5 IN
Length	3.940 IN
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Rated control supply voltage Us at AC 50HZ	415 V
Rated control supply voltage Us at AC 60HZ	480 V
Suitable for motor safety switch	TRUE
Suitable for off-load switch	FALSE
Suitable for overload relay	FALSE
Voltage type for actuating	AC
Weight	0.02200 LB
Width	3.350 IN
