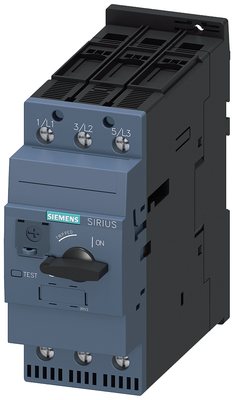

3RV24314XA10 | MSP S2 FOR XFRMR 49-59A SCREW | Siemens Electrical

Circuit breaker, size s2, for transformer protection, a-release 49...59a, n-release 1332a, screw terminal, standard breaking capacity

Brand: Siemens ElectricalSKU: 3RV24314XA10

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV24314XA10

Item Number	3RV24314XA10
Brand	Siemens Electrical
Adjustment range undelayed short-circuit release	1040 A
Complete device with protection unit	TRUE
Degree of protection (IP)	IP20
Device construction	Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional	TRUE
Height	6.57500 IN
Integrated earth fault protection	FALSE
Length	5.78800 IN
Motor drive integrated	FALSE
Motor drive optional	FALSE
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of poles	3
Overload release current setting	49 A
Position of connection for main current circuit	Other
Rated permanent current Iu	59.0 A
Rated short-circuit breaking capacity lcu at 400 V; 50 Hz	65 kA
Rated voltage	20 V
Suitable for DIN rail (top hat rail) mounting	FALSE
Type of control element	Toggle
Type of electrical connection of main circuit	Screw connection
Weight	2.61500 LB
Width	2.44100 IN
With switched-off indicator	FALSE
With under voltage release	FALSE
