3RV24211HA10 | CIRCUIT-BREAKER SCREW CONNECTION 8A | Siemens Electrical

Circuit breaker size S0 For transformer protection A-release 5.5...8 A Short-circuit release 163 A Screw terminal Standard switching capacity

Brand: Siemens ElectricalSKU: 3RV24211HA10

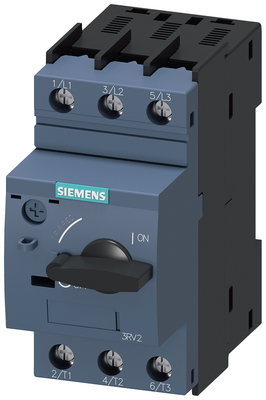

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV24211HA10

Item Number	3RV24211HA10
Brand	Siemens Electrical
Adjustment range undelayed short-circuit release	163 A
Complete device with protection unit	TRUE
Degree of protection (IP)	IP20
Device construction	Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional	TRUE
Integrated earth fault protection	FALSE
Motor drive integrated	FALSE
Motor drive optional	FALSE
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of poles	3
Overload release current setting	5.5 A
Position of connection for main current circuit	Other
Rated permanent current Iu	8.0 A
Rated short-circuit breaking capacity lcu at 400 V; 50 Hz	100 kA
Rated voltage	20 V
Suitable for DIN rail (top hat rail) mounting	FALSE
Type of control element	Toggle
Type of electrical connection of main circuit	Screw connection
Weight	0.78300 LB
With switched-off indicator	FALSE
With under voltage release	FALSE
