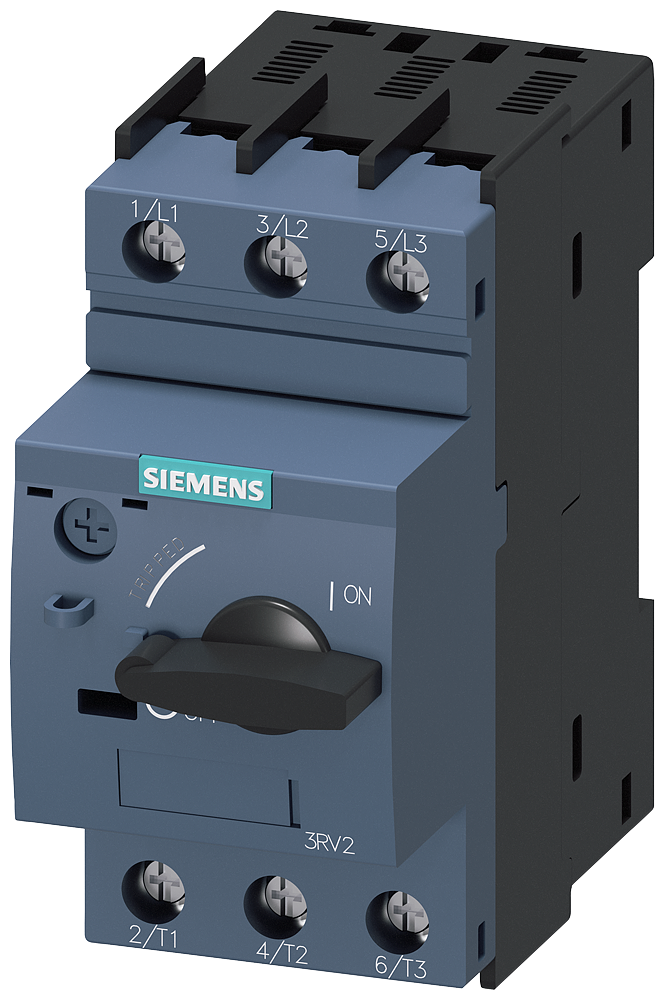

3RV24114AA100BA0 | SPECIAL TYPE CIRCUIT BREAKER 16A | Siemens Electrical

Special type Circuit breaker size S00 for transformer protection A-release 10...16 A N-release 286 A screw terminal Standard switching capacity Ambient temperature -50 Â°C 500 switching cycles

Brand: Siemens ElectricalSKU: 3RV24114AA100BA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RV24114AA100BA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RV24114AA100BA0

Specifications

Item Number	3RV24114AA100BA0
Brand	Siemens Electrical
Adjustment range undelayed short-circuit release	286 A
Complete device with protection unit	TRUE
Degree of protection (IP)	IP20
Device construction	Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional	TRUE
Integrated earth fault protection	FALSE
Motor drive integrated	FALSE
Motor drive optional	FALSE
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of poles	3
Overload release current setting	0.416666666666667
Position of connection for main current circuit	Other
Rated permanent current Iu	16.0 A
Rated short-circuit breaking capacity lcu at 400 V; 50 Hz	55 kA
Rated voltage	20 V
Suitable for DIN rail (top hat rail) mounting	FALSE
Type of control element	Toggle
Type of electrical connection of main circuit	Screw connection
Weight	0.78300 LB
With switched-off indicator	FALSE
With under voltage release	FALSE
