Documents: 3RV24110GA10
3RV24110GA10 | MSP S00 FOR XFRMR 0.45-0.63A SCREW | Siemens Electrical
Circuit-breaker sz s00, for transformer prot. a-release 0.45...0.63a, n-release13a screw connection, standard sw. capacity

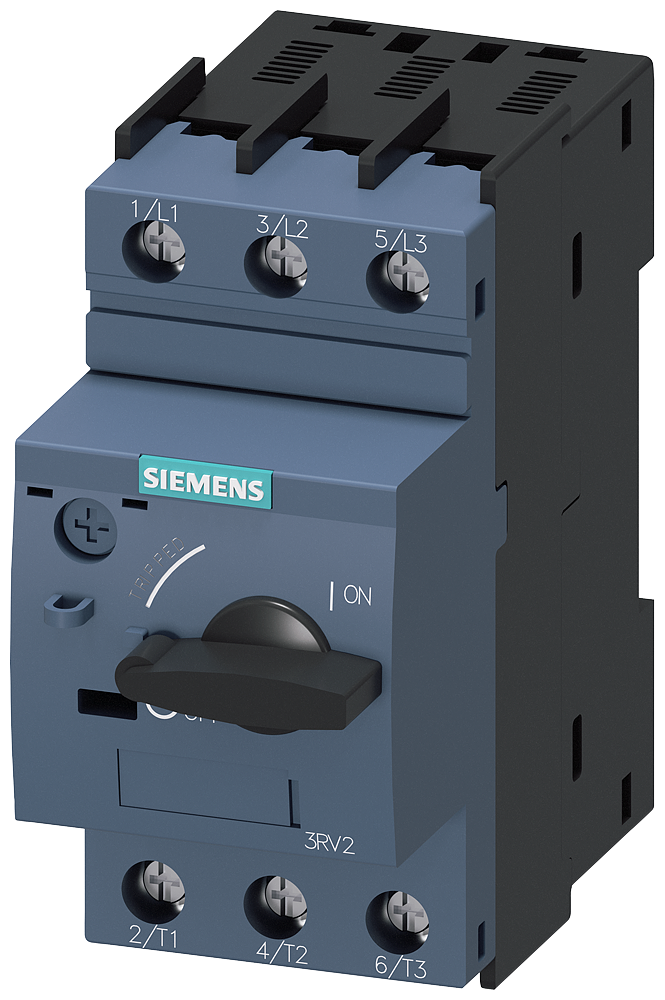

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RV24110GA10
Overview Details for 3RV24110GA10
Specifications
Item Number | 3RV24110GA10 |
Brand | Siemens Electrical |
Adjustment range undelayed short-circuit release | 13 A |
Complete device with protection unit | TRUE |
Degree of protection (IP) | IP20 |
Device construction | Built-in device fixed built-in technique |
DIN rail (top hat rail) mounting optional | TRUE |
Height | 4.020 IN |
Integrated earth fault protection | FALSE |
Length | 4.020 IN |
Motor drive integrated | FALSE |
Motor drive optional | FALSE |
Number of auxiliary contacts as change-over contact | 0 |
Number of auxiliary contacts as normally closed contact | 0 |
Number of auxiliary contacts as normally open contact | 0 |
Number of poles | 3 |
Overload release current setting | 0.45 A |
Position of connection for main current circuit | Other |
Rated permanent current Iu | 0.63 A |
Rated short-circuit breaking capacity lcu at 400 V; 50 Hz | 100 kA |
Rated voltage | 20 V |
Suitable for DIN rail (top hat rail) mounting | FALSE |
Type of control element | Toggle |
Type of electrical connection of main circuit | Screw connection |
Weight | 0.57200 LB |
Width | 1.930 IN |
With switched-off indicator | FALSE |
With under voltage release | FALSE |
