3RV23324PC10 | CIRCUIT BREAKER. SCREW-TYPE. 36 A | Siemens Electrical

Circuit breaker size S2 for starter combination Rated current 36 A N-release 520 A screw terminal increased switching capacity

Brand: Siemens ElectricalSKU: 3RV23324PC10

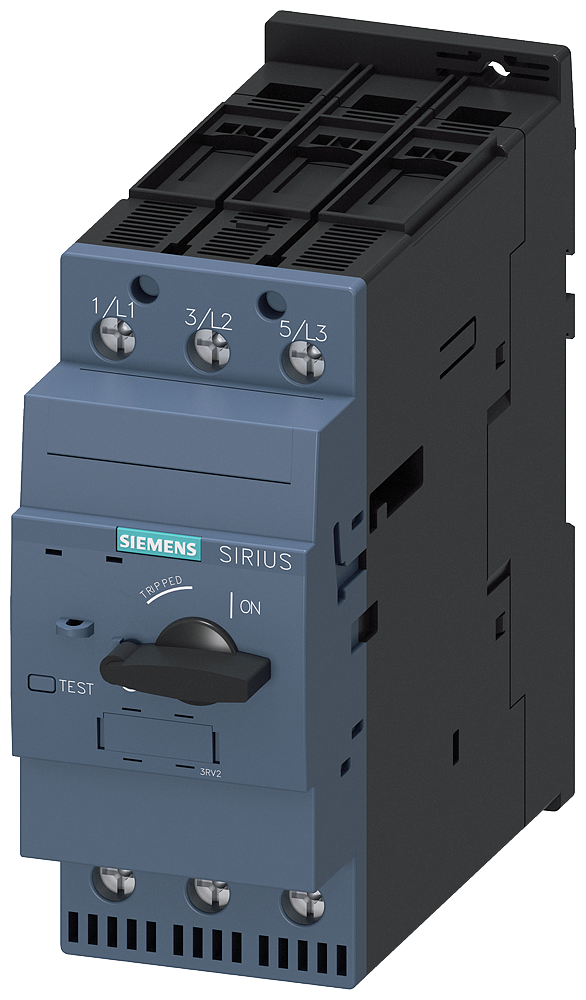

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV23324PC10

Item Number	3RV23324PC10
Brand	Siemens Electrical
Adjustment range undelayed short-circuit release	520 A
Degree of protection (IP)	IP20
Depth	149 mm
Device construction	Built-in device fixed built-in technique
Height	140 mm
Number of poles	3
Phase failure sensitive	FALSE
Rated operating voltage	690 V
Rated operation power at AC-3; 400 V	18.5 kW
Rated permanent current Iu	36.0 A
Rated short-circuit breaking capacity lcu at 400 V; AC	100 kA
Switch off technique	Magnetic
Type of control element	Turn button
Type of electrical connection of main circuit	Screw connection
Weight	2.49400 LB
Width	55 mm
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
