3RV23314RC10 | CIRCUIT-BREAKER S2 80A SCREW | Siemens Electrical

CIRCUIT BREAKER. SIZE S2. FOR STARTER COMBINATION. RATED CURRENT 80A. N-RELEASE 1040A. SCREW TERMINAL. STANDARD BREAKING CAPACITY

Brand: Siemens ElectricalSKU: 3RV23314RC10

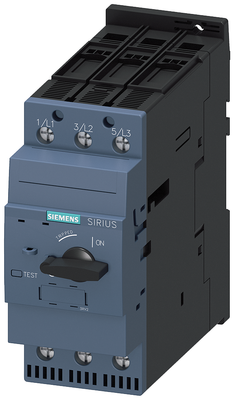

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV23314RC10

Item Number	3RV23314RC10
Brand	Siemens Electrical
Connection type	Screw connection
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	9.8 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	80 ampere
Rated operating power with AC-3; 230 V	22 kilowatt
Rated operating power with AC-3; 400 V	37 kilowatt
Rated permanent current Iu	80 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	650 ampere
Release system	magnetic
Sensitive to phase failure	FALSE
suitable for mounting onto standard rails	FALSE
Weight	2.57500 LB
