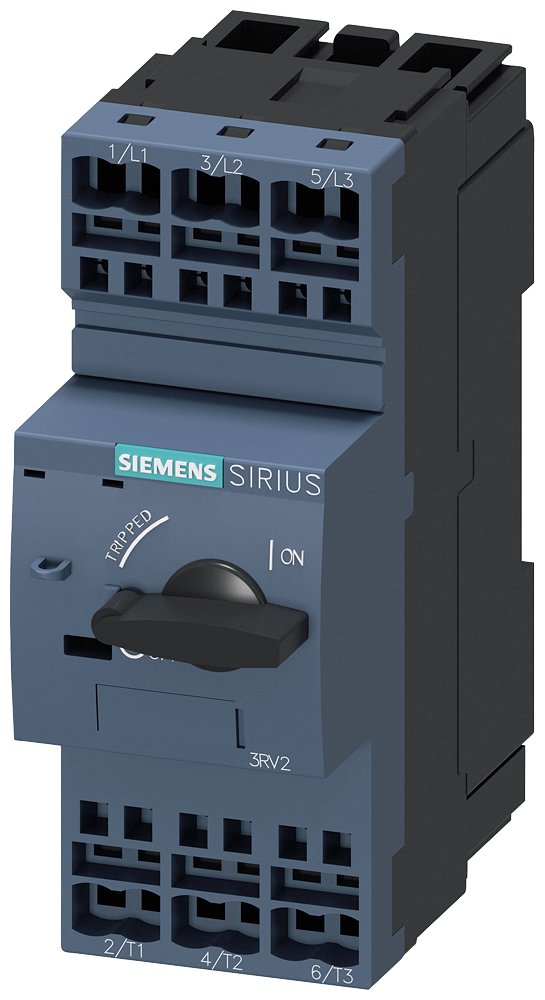

3RV23214BC20 | CIRCUIT-BREAKER S0 20A NO OVERLOAD | Siemens Electrical

CIRCUIT-BREAKER SZ S0, FOR STARTER COMBINATION, RATED CURRENT 20A, N-RELEASE 260A, SPRING-L. CONNECTION, STANDARD SW. CAPACITY

Brand: Siemens ElectricalSKU: 3RV23214BC20

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV23214BC20

Item Number	3RV23214BC20
Brand	Siemens Electrical
Connection type	Spring pulley connection
Height	4.180 IN
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Length	5.240 IN
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	3.5 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	20 ampere
Rated operating power with AC-3; 230 V	6 kilowatt
Rated operating power with AC-3; 400 V	8 kilowatt
Rated permanent current Iu	20 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	550 ampere
Release system	magnetic
Sensitive to phase failure	FALSE
suitable for mounting onto standard rails	FALSE
Weight	0.85800 LB
Width	2.050 IN
