Documents: 3RV23211FC20
3RV23211FC20 | CIRCUIT-BREAKER S0 5A NO OVERLOAD | Siemens Electrical
Circuit breaker size S0 for starter combination Rated current 5 A N release 65 A Spring-type terminal Standard switching capacity

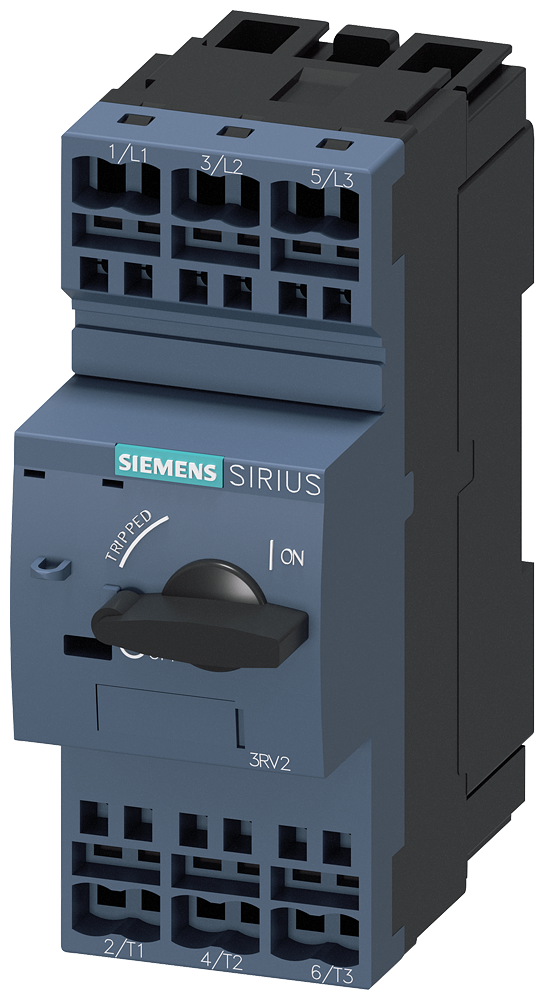

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RV23211FC20
Overview Details for 3RV23211FC20
Specifications
Item Number | 3RV23211FC20 |
Brand | Siemens Electrical |
Connection type | Spring pulley connection |
Height | 4.180 IN |
Integrated auxiliary switch present | FALSE |
Integrated undervoltage tripper present | FALSE |
Length | 5.240 IN |
Manner of using | Toggle |
max. rated operating voltage | 690 volt |
min. rated operating voltage | 690 volt |
Number of auxiliary contacts as opener | 0 |
Number of auxiliary contacts as shutter | 0 |
Pole number | 3 |
Power loss per pole; current-dependent [PlIp] | 2.4 watt |
Protection type IP | IP20 |
Rated current [In] for the power loss specification | 5 ampere |
Rated operating power with AC-3; 230 V | 1 kilowatt |
Rated operating power with AC-3; 400 V | 2 kilowatt |
Rated permanent current Iu | 5 ampere |
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz | 10 ampere |
Release system | magnetic |
Sensitive to phase failure | FALSE |
suitable for mounting onto standard rails | FALSE |
Weight | 0.770 LB |
Width | 2.050 IN |
