3RV21314PA10 | MSP S2 CLASS 10 28-36A SCREW AUTO RESET | Siemens Electrical

Circuit breaker, size s2, for motor protection, class 10, w. overload relay function a-release 28...36a, n-release 520a, standard breaking capacity

Brand: Siemens ElectricalSKU: 3RV21314PA10

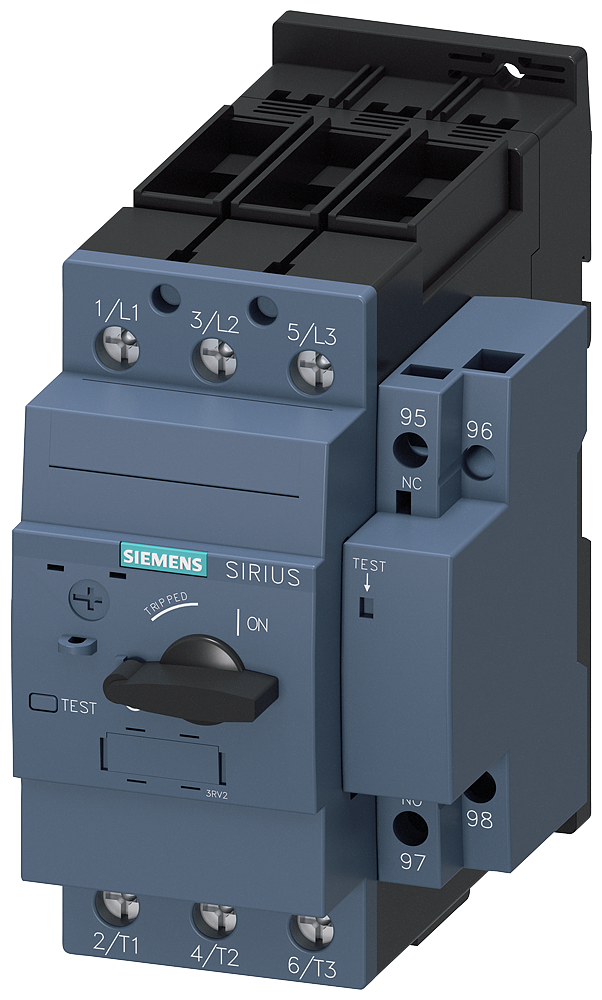

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV21314PA10

Item Number	3RV21314PA10
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	36 ampere
Height	6.49700 IN
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Length	5.78800 IN
Lowest value of setting range for overload tripper	28 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	6.7 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	36 ampere
Rated operating power with AC-3; 400 V	19 kilowatt
Rated permanent current Iu	36 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	650 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	2.49300 LB
Width	3.28800 IN
