Documents: 3RV21314BA10

Datasheet

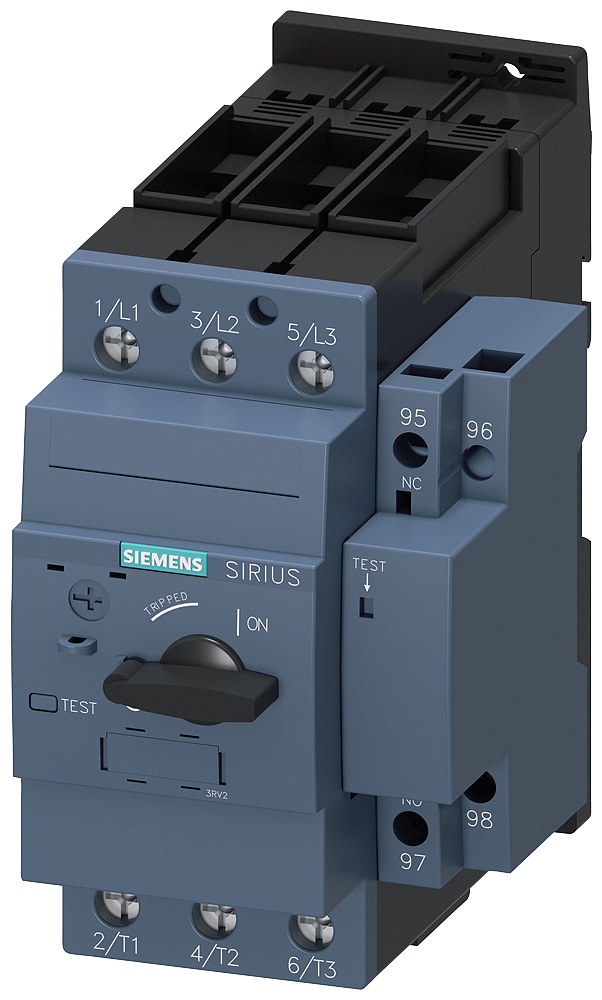

3RV21314BA10 | MSP S2 CLASS 10 14-20A SCREW AUTO RESET | Siemens Electrical

CIRCUIT BREAKER, SIZE S2, FOR MOTOR PROTECTION, CLASS 10, WITH OVERLOAD RELAY FUNCTION A-RELEASE 14...20A, N-RELEASE 260A, SCREW TERMINAL, STANDARD BREAKING CAPACITY

Brand: Siemens ElectricalSKU: 3RV21314BA10

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RV21314BA10

Jump to: Overview & Specifications Reviews

Overview Details for 3RV21314BA10

Specifications

Item Number	3RV21314BA10
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	20 ampere
Height	6.49700 IN
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Length	5.78800 IN
Lowest value of setting range for overload tripper	14 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	4.8 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	20 ampere
Rated operating power with AC-3; 230 V	6 kilowatt
Rated operating power with AC-3; 400 V	8 kilowatt
Rated permanent current Iu	20 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	650 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	2.50200 LB
Width	3.28800 IN
