Documents: 3RV21214DA10

Datasheet

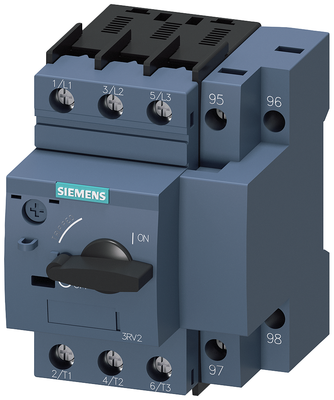

3RV21214DA10 | MSP S0 AUTO RESET 20-25A SCREW | Siemens Electrical

CIRCUIT-BREAKER SZ S0, FOR MOTOR PROTECTION, CLASS 10, W. OVERLOAD RELAY FUNCTION A-RELEASE20...25A, N-RELEASE 325 A, SCREW CONNECTION, STANDARD SW. CAPACITY

Brand: Siemens ElectricalSKU: 3RV21214DA10

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RV21214DA10

Jump to: Overview & Specifications Reviews

Overview Details for 3RV21214DA10

Specifications

Item Number	3RV21214DA10
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	25 ampere
Height	4.150 IN
Integrated auxiliary switch present	TRUE
Integrated undervoltage tripper present	FALSE
Length	5.050 IN
Lowest value of setting range for overload tripper	18 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	3.5 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	25 ampere
Rated operating power with AC-3; 230 V	6 kilowatt
Rated operating power with AC-3; 400 V	11 kilowatt
Rated permanent current Iu	25 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	550 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	0.880 LB
Width	3.900 IN
