Documents: 3RV21110HA10

Datasheet

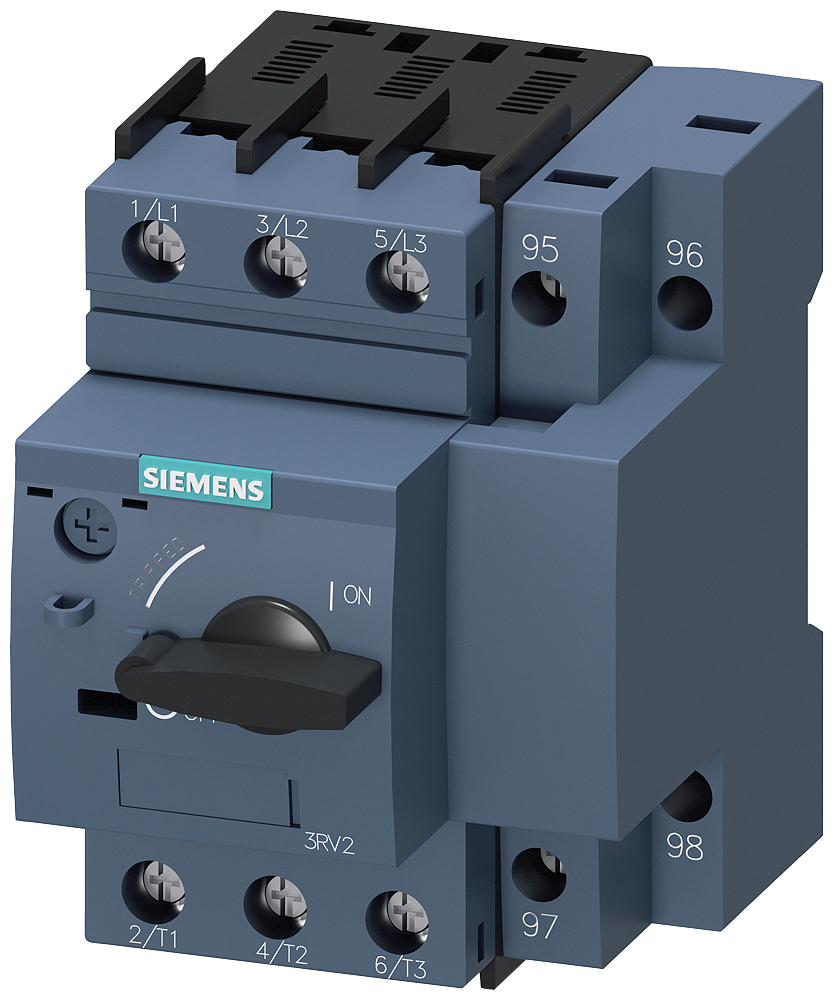

3RV21110HA10 | MSP S00 AUTO RESET 0.55-0.8A SCREW | Siemens Electrical

CIRCUIT-BREAKER SZ S00, FOR MOTOR PROTECTION, CLASS 10, W. OVERLOAD RELAY FUNCTION A-RELEASE 0.55...0.8A,N-RELEASE 10A SCREW CONNECTION, STANDARD SW. CAPACITY

Brand: Siemens ElectricalSKU: 3RV21110HA10

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RV21110HA10

Jump to: Overview & Specifications Reviews

Overview Details for 3RV21110HA10

Specifications

Item Number	3RV21110HA10
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	0.8 ampere
Height	4.100 IN
Integrated auxiliary switch present	TRUE
Integrated undervoltage tripper present	FALSE
Length	4.260 IN
Lowest value of setting range for overload tripper	0.55 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	2.4 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	1 ampere
Rated operating power with AC-3; 230 V	0 kilowatt
Rated operating power with AC-3; 400 V	0 kilowatt
Rated permanent current Iu	1 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	10 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	0.70400 LB
Width	2.840 IN
