3RV20414MA10 | CIRCUIT BREAKER. SCREW-TYPE. 100 A | Siemens Electrical

Circuit-breaker size s3. for motor protection. class 10. a-rel. 80...100a.n-rel. 1300a screw terminal. standard switching capacity

Brand: Siemens ElectricalSKU: 3RV20414MA10

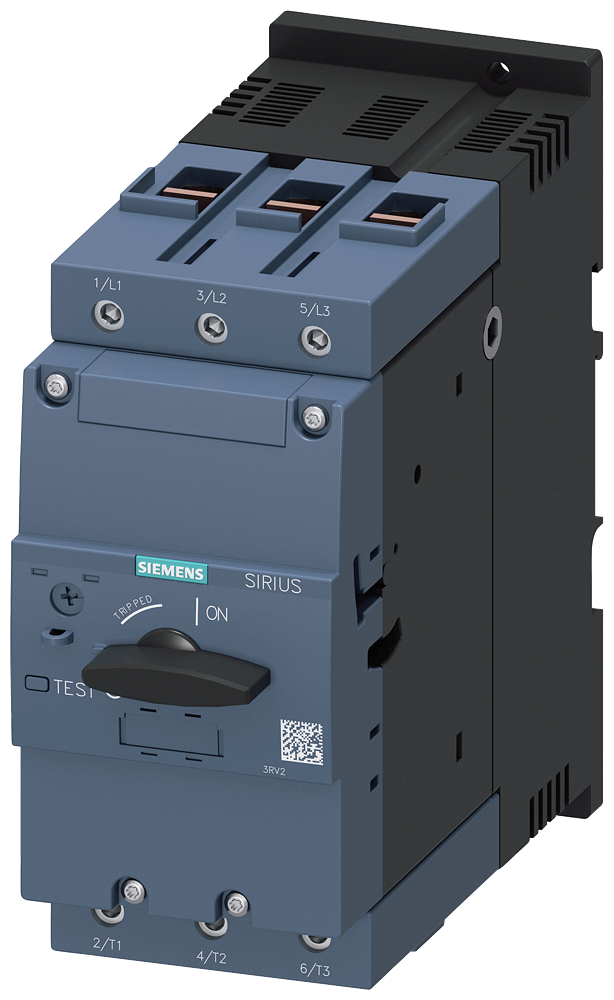

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV20414MA10

Item Number	3RV20414MA10
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	100 ampere
Height	8 IN
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Length	8.100 IN
Lowest value of setting range for overload tripper	80 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Pole number	3
Power loss per pole; current-dependent [PlIp]	14.7 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	100 ampere
Rated operating power with AC-3; 230 V	30 kilowatt
Rated operating power with AC-3; 400 V	45 kilowatt
Rated permanent current Iu	100 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	650 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	5.030 LB
Width	2.800 IN
