Documents: 3RV2032-4RA15

Datasheet

3RV2032-4RA15 | CIRCUIT BREAKER. SCREW-TYPE. 80 A | Siemens Electrical

Circuit breaker. size s2. for motor protection. class 10. a-release 70..80a. n-release 1040a. screw terminal. increased switching capacity w. transv. aux. switch 1NO+1NC

Brand: Siemens ElectricalSKU: 3RV2032-4RA15

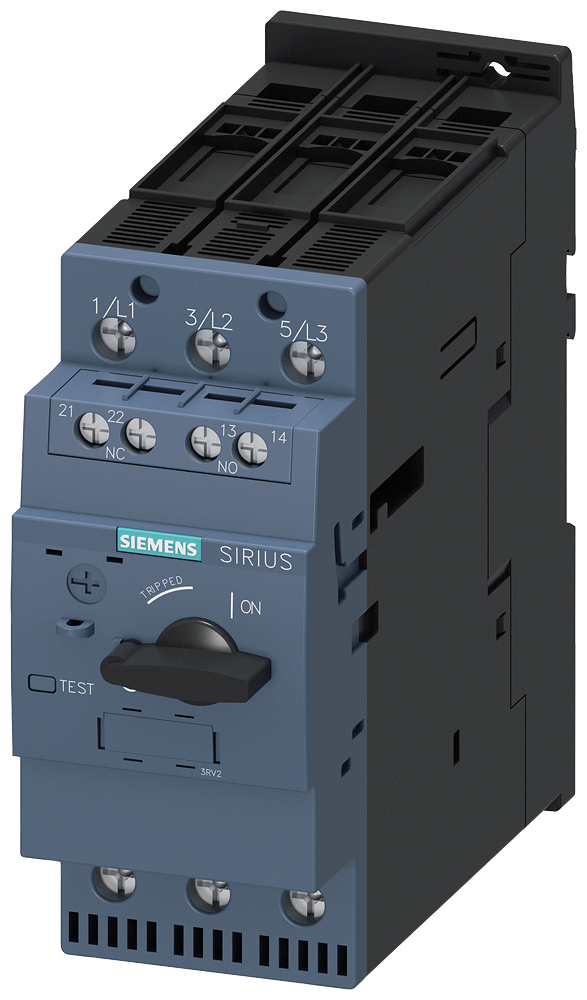

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RV2032-4RA15

Jump to: Overview & Specifications Reviews

Overview Details for 3RV2032-4RA15

Specifications

Item Number	3RV2032-4RA15
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	80 ampere
Integrated auxiliary switch present	TRUE
Integrated undervoltage tripper present	FALSE
Lowest value of setting range for overload tripper	70 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	1
Number of auxiliary contacts as shutter	1
Pole number	3
Power loss per pole; current-dependent [PlIp]	9.8 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	80 ampere
Rated operating power with AC-3; 230 V	22 kilowatt
Rated operating power with AC-3; 400 V	37 kilowatt
Rated permanent current Iu	80 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	10 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	2.61500 LB
