Documents: 3RV2032-4KA10
3RV2032-4KA10 | CIRCUIT BREAKER. SCREW-TYPE. 73 A | Siemens Electrical
Circuit breaker. size s2. for motor protection. class 10. a-release 62...73a. n-release 949a. screw terminal. increased switching capacity

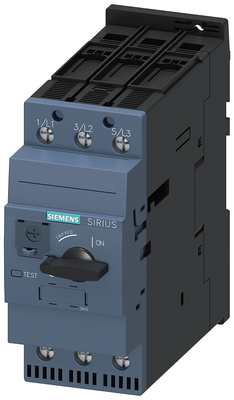

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RV2032-4KA10
Overview Details for 3RV2032-4KA10
Specifications
Item Number | 3RV2032-4KA10 |
Brand | Siemens Electrical |
Connection type | Screw connection |
Greatest value of overload release adjustment range | 73 ampere |
Integrated auxiliary switch present | FALSE |
Integrated undervoltage tripper present | FALSE |
Lowest value of setting range for overload tripper | 62 ampere |
Manner of using | Toggle |
max. rated operating voltage | 690 volt |
min. rated operating voltage | 690 volt |
Pole number | 3 |
Power loss per pole; current-dependent [PlIp] | 9.8 watt |
Protection type IP | IP20 |
Rated current [In] for the power loss specification | 73 ampere |
Rated operating power with AC-3; 230 V | 22 kilowatt |
Rated operating power with AC-3; 400 V | 37 kilowatt |
Rated permanent current Iu | 73 ampere |
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz | 10 ampere |
Release system | magnetic |
Sensitive to phase failure | TRUE |
suitable for mounting onto standard rails | FALSE |
Weight | 2.580 LB |
