Documents: 3RV20314VB10
3RV20314VB10 | MSP S2 CLASS 20 35-45A SCREW | Siemens Electrical
Circuit breaker, size s2, for motor protection, class 20, a-release 35...45a, n-release 650a, screw terminal, standard breaking capacity

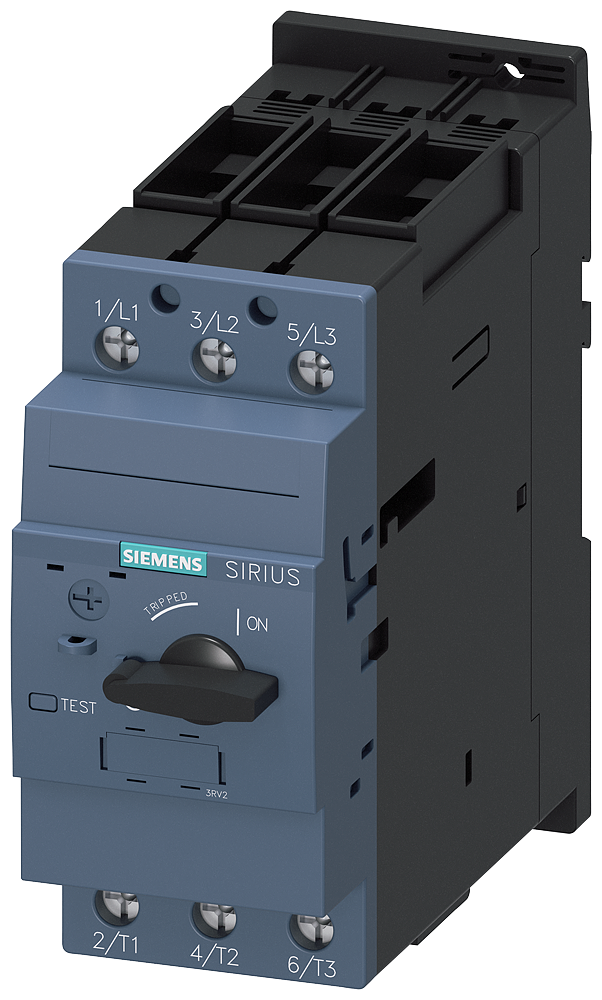

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RV20314VB10
Overview Details for 3RV20314VB10
Specifications
Item Number | 3RV20314VB10 |
Brand | Siemens Electrical |
Connection type | Screw connection |
Greatest value of overload release adjustment range | 45 ampere |
Height | 6.57500 IN |
Integrated auxiliary switch present | FALSE |
Integrated undervoltage tripper present | FALSE |
Length | 5.78800 IN |
Lowest value of setting range for overload tripper | 35 ampere |
Manner of using | Toggle |
max. rated operating voltage | 690 volt |
min. rated operating voltage | 690 volt |
Pole number | 3 |
Power loss per pole; current-dependent [PlIp] | 8.2 watt |
Protection type IP | IP20 |
Rated current [In] for the power loss specification | 45 ampere |
Rated operating power with AC-3; 230 V | 11 kilowatt |
Rated operating power with AC-3; 400 V | 22 kilowatt |
Rated permanent current Iu | 45 ampere |
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz | 650 ampere |
Release system | magnetic |
Sensitive to phase failure | TRUE |
suitable for mounting onto standard rails | FALSE |
Weight | 2.45200 LB |
Width | 2.44100 IN |
