Documents: 3RV20314SB15
3RV20314SB15 | CIRCUIT BREAKER. SCREW-TYPE. 14 A | Siemens Electrical
Circuit breaker. size s2. for motor protection. class 20. a-release 9.5...14a. n-release 208a. screw terminal. standard breaking capacity w. transv. aux. switch 1NO+1NC

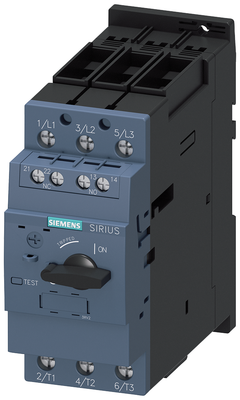

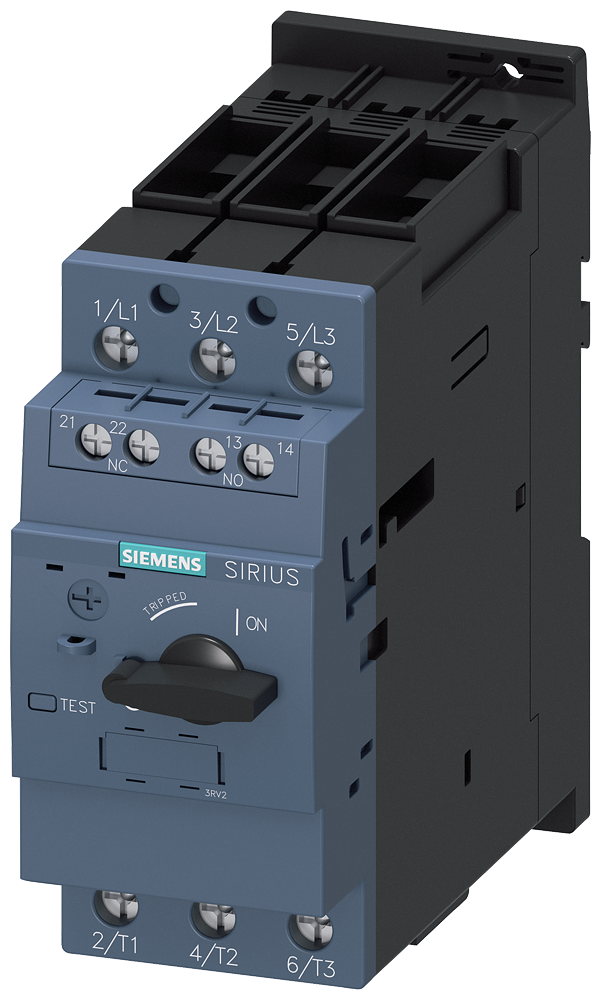

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RV20314SB15
Overview Details for 3RV20314SB15
Specifications
Item Number | 3RV20314SB15 |
Brand | Siemens Electrical |
Connection type | Screw connection |
Greatest value of overload release adjustment range | 14 ampere |
Integrated auxiliary switch present | TRUE |
Integrated undervoltage tripper present | FALSE |
Lowest value of setting range for overload tripper | 9.5 ampere |
Manner of using | Toggle |
max. rated operating voltage | 690 volt |
min. rated operating voltage | 690 volt |
Number of auxiliary contacts as opener | 1 |
Number of auxiliary contacts as shutter | 1 |
Pole number | 3 |
Power loss per pole; current-dependent [PlIp] | 4.2 watt |
Protection type IP | IP20 |
Rated current [In] for the power loss specification | 14 ampere |
Rated operating power with AC-3; 230 V | 3 kilowatt |
Rated operating power with AC-3; 400 V | 6 kilowatt |
Rated permanent current Iu | 14 ampere |
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz | 650 ampere |
Release system | magnetic |
Sensitive to phase failure | TRUE |
suitable for mounting onto standard rails | FALSE |
Weight | 2.40600 LB |
