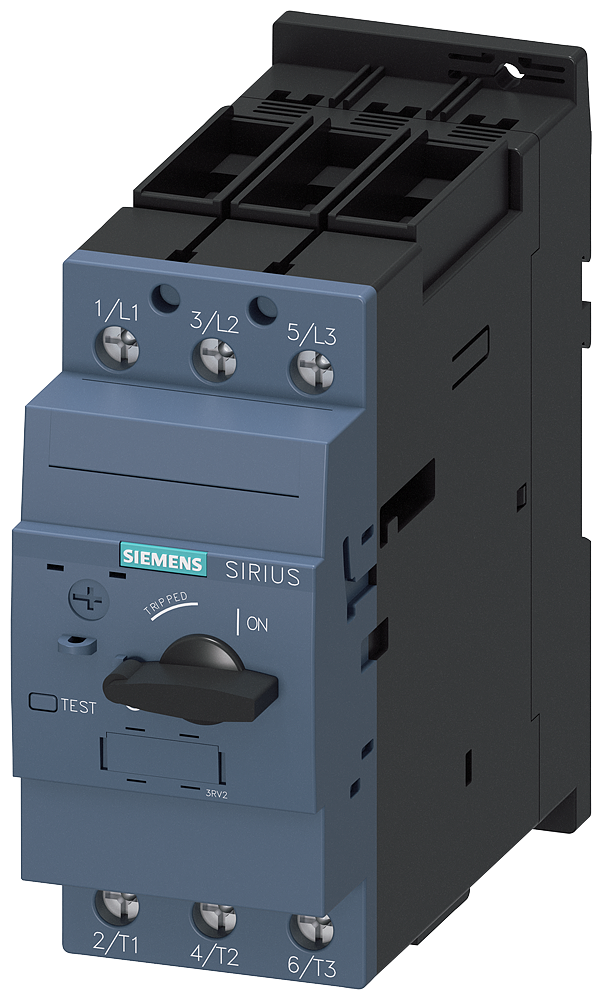

3RV20314PA10 | MSP S2 CLASS 10 28-36A SCREW | Siemens Electrical

Circuit breaker, size s2, for motor protection, class 10, a-release 28...36a, n-release 520a, screw terminal, standard breaking capacity

Brand: Siemens ElectricalSKU: 3RV20314PA10

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV20314PA10

Item Number	3RV20314PA10
Brand	Siemens Electrical
Adjustment range undelayed short-circuit release	520 A
Degree of protection (IP)	IP20
Depth	149 mm
Device construction	Built-in device fixed built-in technique
Height	6.57500 IN
Length	5.78800 IN
Number of poles	3
Overload release current setting	28 A
Phase failure sensitive	TRUE
Rated operating voltage	690 V
Rated operation power at AC-3; 400 V	18.5 kW
Rated permanent current Iu	36.0 A
Rated short-circuit breaking capacity lcu at 400 V; AC	65 kA
Switch off technique	Magnetic
Type of control element	Turn button
Type of electrical connection of main circuit	Screw connection
Weight	2.38100 LB
Width	2.44100 IN
With integrated auxiliary switch	FALSE
With integrated under voltage release	FALSE
