3RV20314JA100BA0 | SPECIAL TYPE CIRCUIT BREAKER 65A | Siemens Electrical

Special type Circuit breaker size S2 for motor protection, CLASS 10 A-release 54...65 A N-release 845 A screw terminal Standard switching capacity Ambient temperature -50 C 250 switching cycles

Brand: Siemens ElectricalSKU: 3RV20314JA100BA0

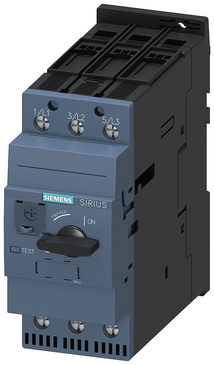

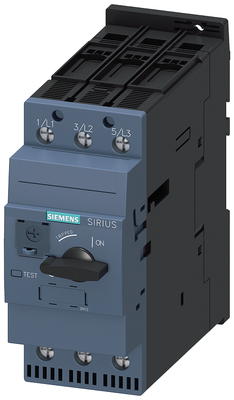

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RV20314JA100BA0

Jump to: Overview & Specifications Reviews

Overview Details for 3RV20314JA100BA0

Specifications

Item Number	3RV20314JA100BA0
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	65 ampere
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Lowest value of setting range for overload tripper	54 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	8.7 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	65 ampere
Rated operating power with AC-3; 230 V	19 kilowatt
Rated operating power with AC-3; 400 V	30 kilowatt
Rated permanent current Iu	65 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	650 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	2.57100 LB
