3RV20314JA10 | MSP S2 CLASS 10 54-65A SCREW | Siemens Electrical

Circuit breaker size s2. for motor protection, class 10, a-release 54...65a, n-release 845a, screw terminal, standard breaking capacity

Brand: Siemens ElectricalSKU: 3RV20314JA10

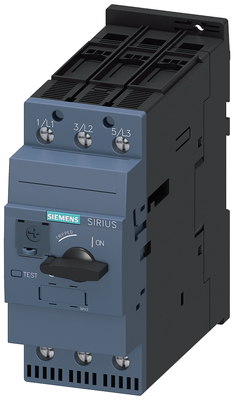

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV20314JA10

Item Number	3RV20314JA10
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	65 ampere
Height	7.100 IN
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Length	7 IN
Lowest value of setting range for overload tripper	54 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Pole number	3
Power loss per pole; current-dependent [PlIp]	8.7 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	65 ampere
Rated operating power with AC-3; 230 V	19 kilowatt
Rated operating power with AC-3; 400 V	30 kilowatt
Rated permanent current Iu	65 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	650 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	2.600 LB
Width	2.900 IN
