Documents: 3RV20314EB15

Datasheet

3RV20314EB15 | MSP S2 CLASS 20 22-32A SCREW 1NO/1NC AUX | Siemens Electrical

Circuit breaker, size s2, for motor protection, class 20, a-release 22...32a, n-release 416a, screw terminal, standard breaking capacity w. transv. aux. switch 1NO+1NC

Brand: Siemens ElectricalSKU: 3RV20314EB15

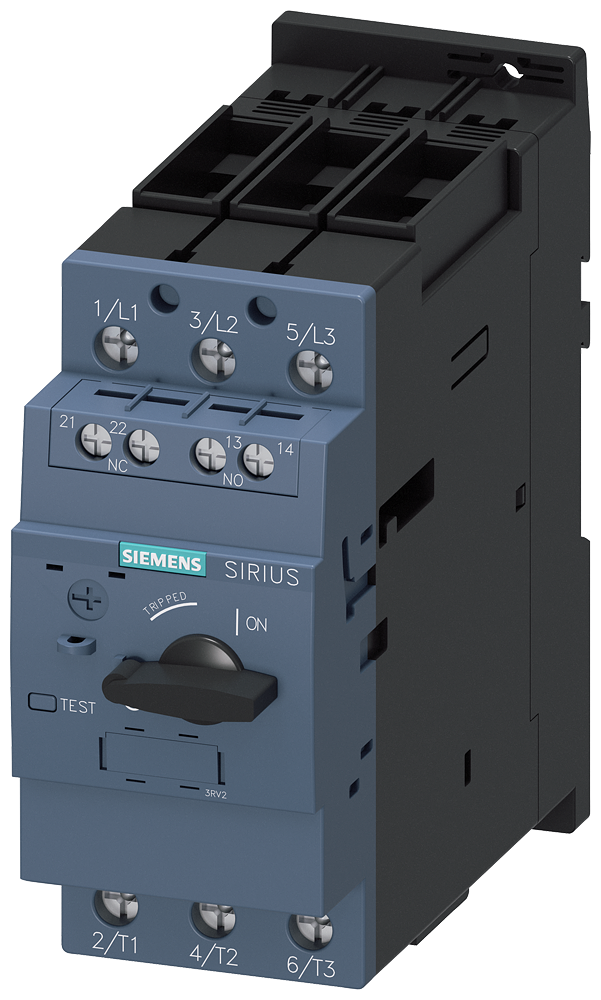

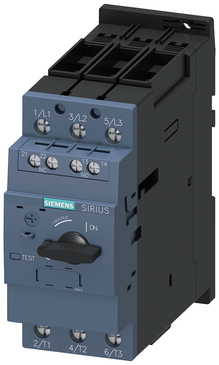

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RV20314EB15

Jump to: Overview & Specifications Reviews

Overview Details for 3RV20314EB15

Specifications

Item Number	3RV20314EB15
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	32 ampere
Height	5.86700 IN
Integrated auxiliary switch present	TRUE
Integrated undervoltage tripper present	FALSE
Length	6.57500 IN
Lowest value of setting range for overload tripper	22 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	1
Number of auxiliary contacts as shutter	1
Pole number	3
Power loss per pole; current-dependent [PlIp]	6 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	32 ampere
Rated operating power with AC-3; 230 V	8 kilowatt
Rated operating power with AC-3; 400 V	15 kilowatt
Rated permanent current Iu	32 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	650 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	2.33700 LB
Width	2.44100 IN
