3RV20214DA40 | MSP S0 20-25A RING LUG | Siemens Electrical

CIRCUIT-BREAKER SZ S0, FOR MOTOR PROTECTION, CLASS 10, A-RELEASE 20...25A, N-RELEASE 325A, RING CABLE LUG CONNECTION, STANDARD SW. CAPACITY,

Brand: Siemens ElectricalSKU: 3RV20214DA40

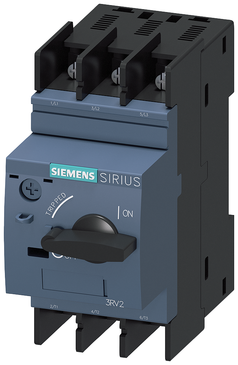

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV20214DA40

Item Number	3RV20214DA40
Brand	Siemens Electrical
Connection type	Ring cable connection
Greatest value of overload release adjustment range	25 ampere
Height	4.020 IN
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Length	4.020 IN
Lowest value of setting range for overload tripper	18 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	3.5 watt
Protection type IP	IP00
Rated current [In] for the power loss specification	25 ampere
Rated operating power with AC-3; 230 V	6 kilowatt
Rated operating power with AC-3; 400 V	11 kilowatt
Rated permanent current Iu	25 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	550 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	0.72600 LB
Width	1.930 IN
