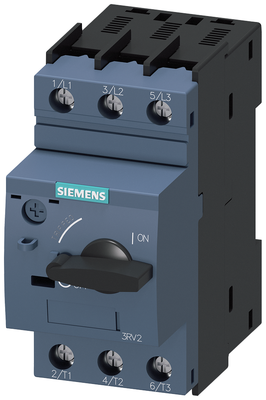

3RV20214DA100DA0 | CIRCUIT-BREAKER SCREW CONNECTION 25A | Siemens Electrical

Brand: Siemens ElectricalSKU: 3RV20214DA100DA0

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV20214DA100DA0

Item Number	3RV20214DA100DA0
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	1 ampere
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Lowest value of setting range for overload tripper	0.72 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	3.5 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	25 ampere
Rated operating power with AC-3; 230 V	6 kilowatt
Rated operating power with AC-3; 400 V	11 kilowatt
Rated permanent current Iu	25 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	550 ampere
Release system	magnetic
Sensitive to phase failure	FALSE
suitable for mounting onto standard rails	FALSE
Weight	0.81600 LB
