3RV20214AA15 | MSP S0 11-16A SCREW W/AUX 1NO/1NC | Siemens Electrical
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$190.31
Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs. Shipping and Returns Terms
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

Speak With a Technical Expert

Image for Technical Expert

Documents: 3RV20214AA15

3RV20214AA15 | MSP S0 11-16A SCREW W/AUX 1NO/1NC | Siemens Electrical

Switch_MOTOR 3RV2021-4AA15-3RV2021-4AA15_11...16A_16A_690V

Brand: Siemens ElectricalSKU: 3RV20214AA15
Siemens Electrical | 3RV20214AA15

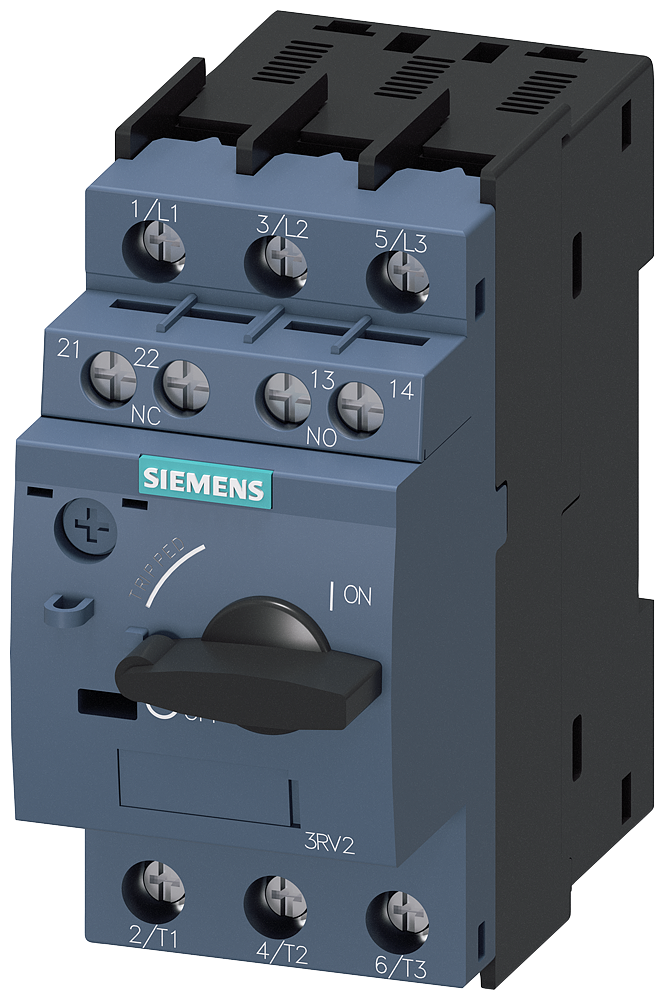

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RV20214AA15

Overview Details for 3RV20214AA15

Specifications

Item Number 3RV20214AA15
Brand Siemens Electrical
Connection type Screw connection
Greatest value of overload release adjustment range 16 ampere
Height 4 IN
Integrated auxiliary switch present TRUE
Integrated undervoltage tripper present FALSE
Length 5.200 IN
Lowest value of setting range for overload tripper 10 ampere
Manner of using Toggle
max. rated operating voltage 690 volt
min. rated operating voltage 690 volt
Number of auxiliary contacts as opener 1
Number of auxiliary contacts as shutter 1
Pole number 3
Power loss per pole; current-dependent [PlIp] 3.1 watt
Protection type IP IP20
Rated current [In] for the power loss specification 16 ampere
Rated operating power with AC-3; 230 V 4 kilowatt
Rated operating power with AC-3; 400 V 8 kilowatt
Rated permanent current Iu 16 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz 550 ampere
Release system magnetic
Sensitive to phase failure TRUE
suitable for mounting onto standard rails FALSE
Weight 0.83500 LB
Width 2.550 IN
