3RV20211JA10 | MSP S0 7-10A SCREW | Siemens Electrical

Switch_MOTOR 3RV2021-1JA10-3RV2021-1JA10_7...10A_10A_460V

Brand: Siemens ElectricalSKU: 3RV20211JA10

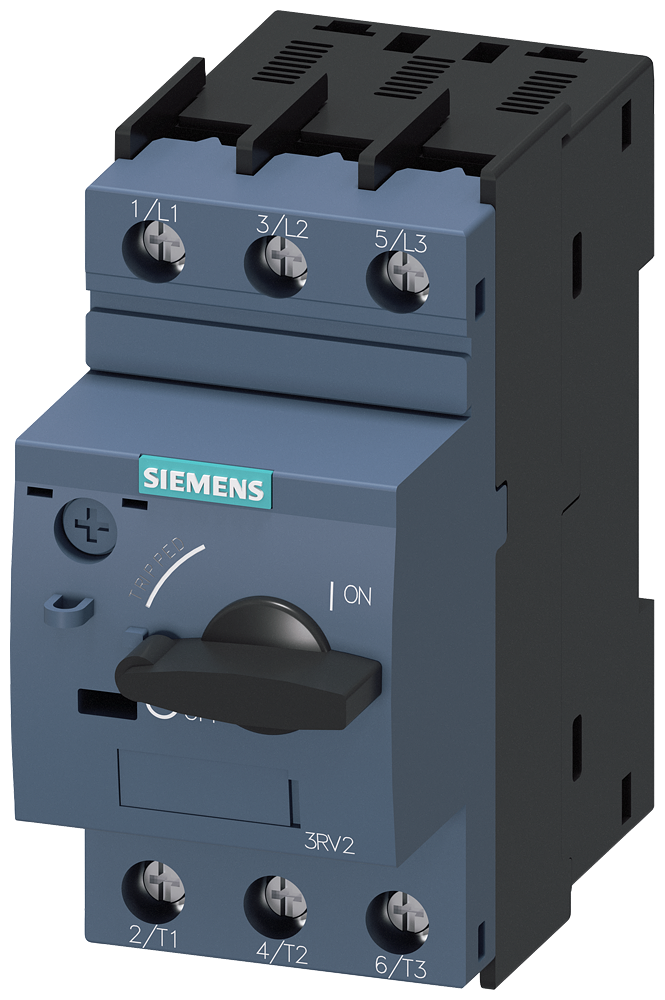

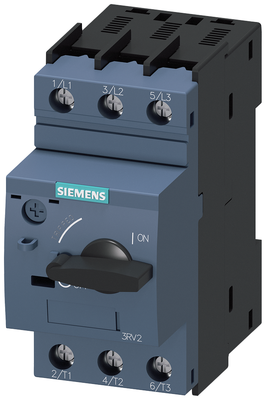

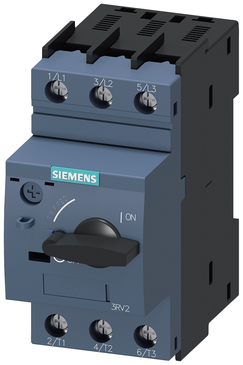

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV20211JA10

Item Number	3RV20211JA10
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	10 ampere
Height	4.200 IN
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Length	4.3 IN
Lowest value of setting range for overload tripper	7 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	3.1 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	10 ampere
Rated operating power with AC-3; 230 V	2 kilowatt
Rated operating power with AC-3; 400 V	4 kilowatt
Rated permanent current Iu	10 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	10 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	0.730 LB
Width	1.700 IN
