Documents: 3RV20210KA25

Datasheet

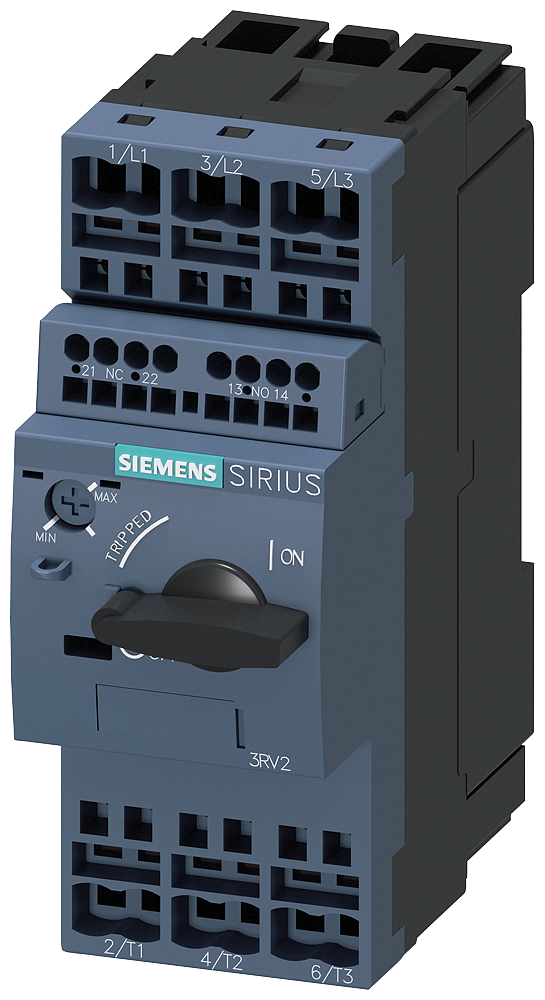

3RV20210KA25 | MSP S0 0.9-1.25A SPRG W/AUX 1NO/1NC | Siemens Electrical

Circuit-breaker sz s0, for motor protection, class 10, a-rel. 0.9...1.25a, n-rel. 16a spring-l. connection, standard sw. capacity w. transverse aux. switch 1NO+1NC

Brand: Siemens ElectricalSKU: 3RV20210KA25

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 3RV20210KA25

Jump to: Overview & Specifications Reviews

Overview Details for 3RV20210KA25

Specifications

Item Number	3RV20210KA25
Brand	Siemens Electrical
Connection type	Spring pulley connection
Greatest value of overload release adjustment range	1.25 ampere
Height	2.16600 IN
Integrated auxiliary switch present	TRUE
Integrated undervoltage tripper present	FALSE
Length	5.11900 IN
Lowest value of setting range for overload tripper	0.9 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	1
Number of auxiliary contacts as shutter	1
Pole number	3
Power loss per pole; current-dependent [PlIp]	2.4 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	1 ampere
Rated operating power with AC-3; 230 V	0 kilowatt
Rated operating power with AC-3; 400 V	0 kilowatt
Rated permanent current Iu	1 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	10 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	0.930 LB
Width	4.17400 IN
