Documents: 3RV20210JA20
3RV20210JA20 | MSP S0 0.7 - 1A SPRING | Siemens Electrical
Circuit breaker size s0 for motor protection, class 10 a-release 0.7...1 a n-release 13 a spring-type terminal standard switching capacity

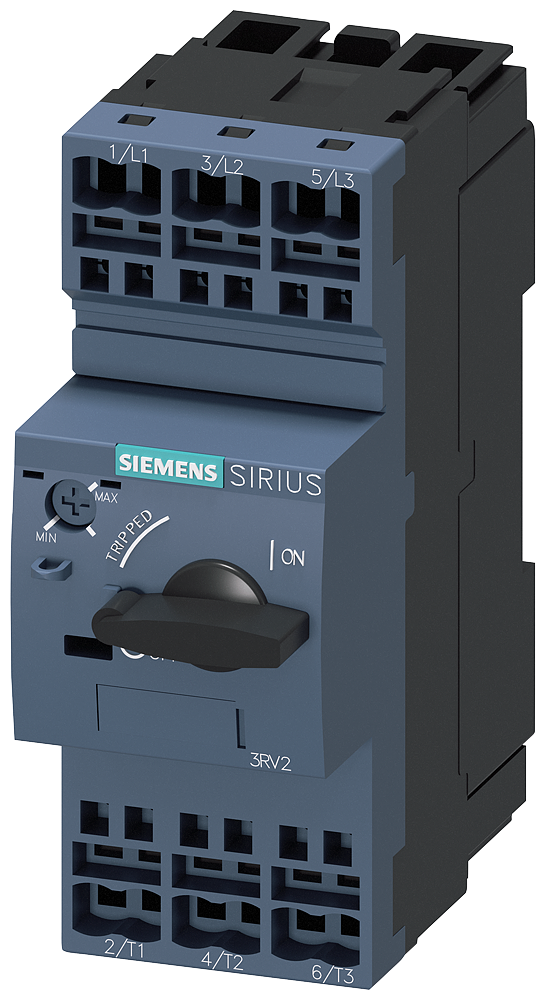

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RV20210JA20
Overview Details for 3RV20210JA20
Specifications
Item Number | 3RV20210JA20 |
Brand | Siemens Electrical |
Connection type | Spring pulley connection |
Greatest value of overload release adjustment range | 1 ampere |
Height | 4.180 IN |
Integrated auxiliary switch present | FALSE |
Integrated undervoltage tripper present | FALSE |
Length | 5.240 IN |
Lowest value of setting range for overload tripper | 0.7 ampere |
Manner of using | Toggle |
max. rated operating voltage | 690 volt |
min. rated operating voltage | 690 volt |
Number of auxiliary contacts as opener | 0 |
Number of auxiliary contacts as shutter | 0 |
Pole number | 3 |
Power loss per pole; current-dependent [PlIp] | 2.4 watt |
Protection type IP | IP20 |
Rated current [In] for the power loss specification | 1 ampere |
Rated operating power with AC-3; 230 V | 0 kilowatt |
Rated operating power with AC-3; 400 V | 0 kilowatt |
Rated permanent current Iu | 1 ampere |
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz | 10 ampere |
Release system | magnetic |
Sensitive to phase failure | TRUE |
suitable for mounting onto standard rails | FALSE |
Weight | 0.770 LB |
Width | 2.050 IN |
