3RV20114AA10 | MSP S00 11-16A SCREW | Siemens Electrical

Circuit-breaker sz s00, for motor protection, class 10, a-release 11...16a, n-release 208a, screw connection, standard sw. capacity

Brand: Siemens ElectricalSKU: 3RV20114AA10

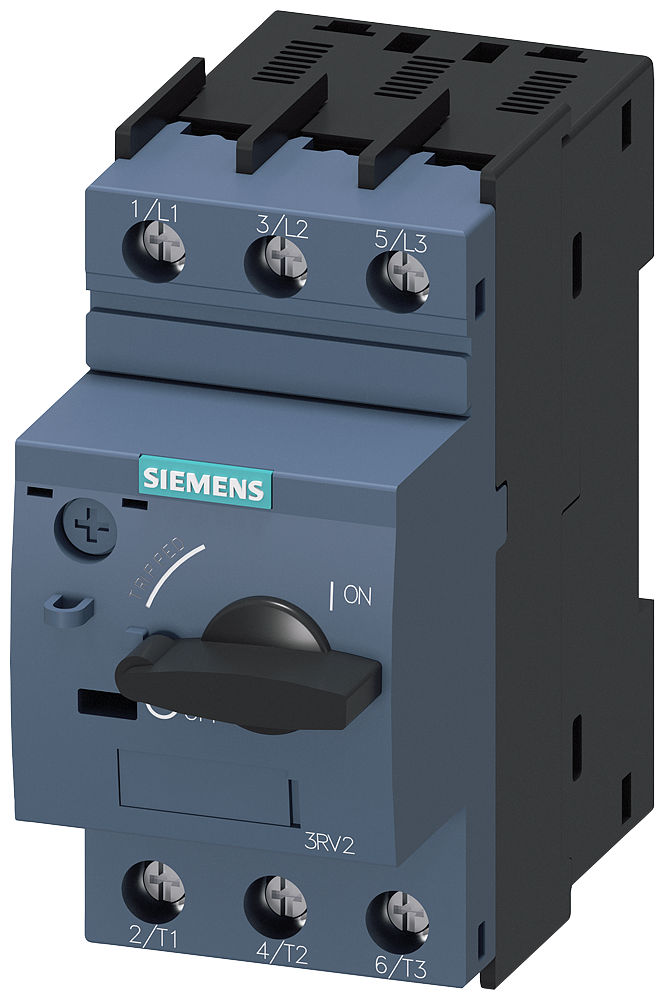

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RV20114AA10

Item Number	3RV20114AA10
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	16 ampere
Height	4 IN
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Length	4.150 IN
Lowest value of setting range for overload tripper	10 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	3.1 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	16 ampere
Rated operating power with AC-3; 230 V	4 kilowatt
Rated operating power with AC-3; 400 V	8 kilowatt
Rated permanent current Iu	16 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	550 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	0.78500 LB
Width	2 IN
