Documents: 3RV20111EA15

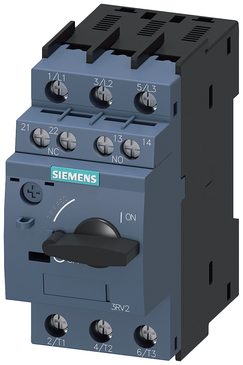

3RV20111EA15 | MSP S00 2.8-4A AUX 1NO 1NC SCREW | Siemens Electrical

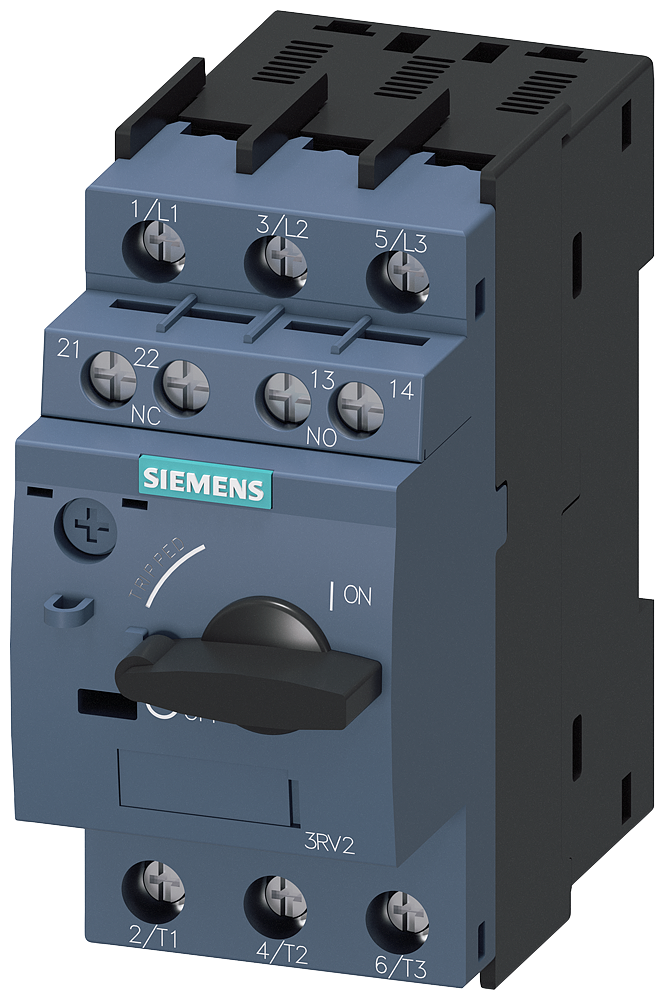

Switch_motor -3RV2011-1ea15
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RV20111EA15
Overview Details for 3RV20111EA15
Specifications
Item Number | 3RV20111EA15 |
Brand | Siemens Electrical |
Connection type | Screw connection |
Greatest value of overload release adjustment range | 4 ampere |
Height | 4.020 IN |
Integrated auxiliary switch present | TRUE |
Integrated undervoltage tripper present | FALSE |
Length | 4.020 IN |
Lowest value of setting range for overload tripper | 2.8 ampere |
Manner of using | Toggle |
max. rated operating voltage | 690 volt |
min. rated operating voltage | 690 volt |
Number of auxiliary contacts as opener | 1 |
Number of auxiliary contacts as shutter | 1 |
Pole number | 3 |
Power loss per pole; current-dependent [PlIp] | 2.4 watt |
Protection type IP | IP20 |
Rated current [In] for the power loss specification | 4 ampere |
Rated operating power with AC-3; 230 V | 1 kilowatt |
Rated operating power with AC-3; 400 V | 2 kilowatt |
Rated permanent current Iu | 4 ampere |
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz | 10 ampere |
Release system | magnetic |
Sensitive to phase failure | TRUE |
suitable for mounting onto standard rails | FALSE |
Weight | 0.700 LB |
Width | 1.930 IN |
