3RV20111DA15 | SWITCH_MOTOR_3RV2011-1DA15 | Siemens Electrical

Circuit-breaker sz s00, for motor protection, class 10, a-rel. 2.2...3.2a, n-release42a, screw connection, standard sw. capacity w. transverse aux. switch 1NO+1NC

Brand: Siemens ElectricalSKU: 3RV20111DA15

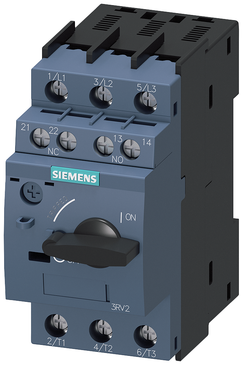

Siemens Electrical | 3RV20111DA15

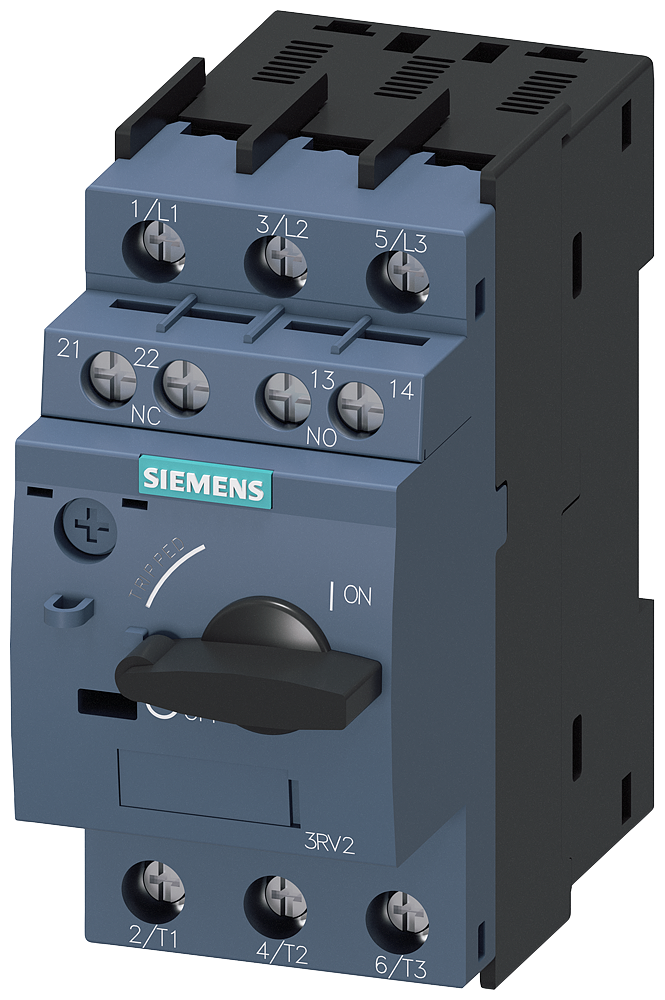

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RV20111DA15

Overview Details for 3RV20111DA15

Specifications

Item Number 3RV20111DA15
Brand Siemens Electrical
Connection type Screw connection
Greatest value of overload release adjustment range 3.2 ampere
Height 4.020 IN
Integrated auxiliary switch present TRUE
Integrated undervoltage tripper present FALSE
Length 4.020 IN
Lowest value of setting range for overload tripper 2.2 ampere
Manner of using Toggle
max. rated operating voltage 690 volt
min. rated operating voltage 690 volt
Number of auxiliary contacts as opener 1
Number of auxiliary contacts as shutter 1
Pole number 3
Power loss per pole; current-dependent [PlIp] 2.4 watt
Protection type IP IP20
Rated current [In] for the power loss specification 3 ampere
Rated operating power with AC-3; 230 V 1 kilowatt
Rated operating power with AC-3; 400 V 1 kilowatt
Rated permanent current Iu 3 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz 10 ampere
Release system magnetic
Sensitive to phase failure TRUE
suitable for mounting onto standard rails FALSE
Weight 0.800 LB
Width 1.930 IN
