Documents: 3RT26271AP65
3RT26271AP65 | CAP CONTACTOR 25KVAR 1NO+2NC 240VAC | Siemens Electrical
Contactor. AC-6b. 25kvar/400v. 1NO+2NC. 220 V AC 50HZ / 240 V AC 60 HZ. 3-pole. size s0 screw terminal

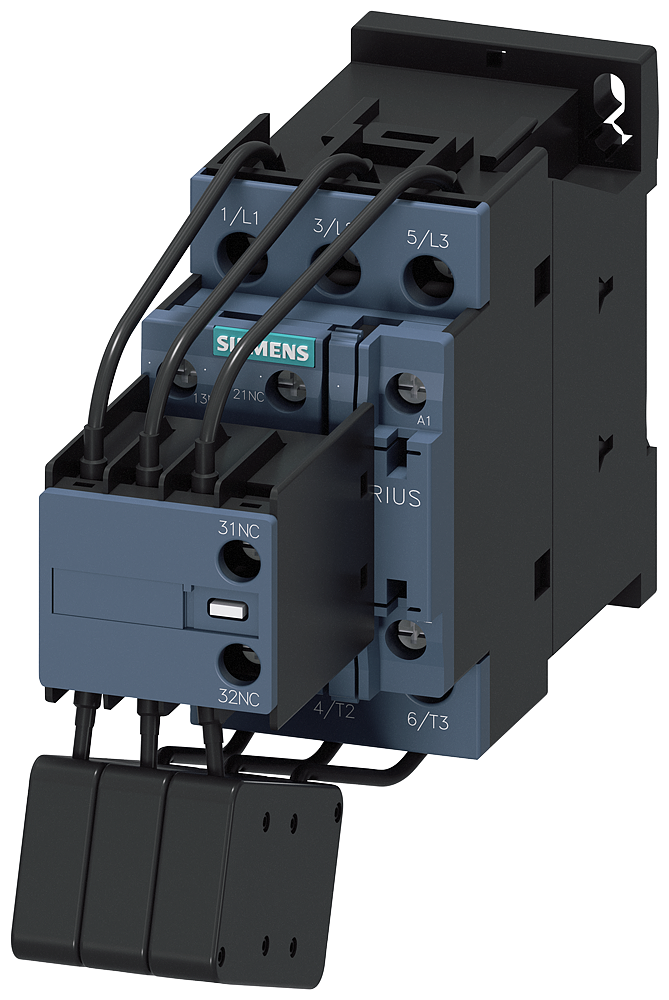

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT26271AP65
Overview Details for 3RT26271AP65
Specifications
Item Number | 3RT26271AP65 |
Brand | Siemens Electrical |
max. rated AC voltage for controls (60 Hz) | 240 volt |
Max. rated AC voltage for controls; 50 Hz | 220 volt |
min. rated control voltage Us with AC 50 Hz | 220 volt |
min. rated control voltage Us with AC 60 Hz | 240 volt |
Number of auxiliary contacts as opener | 2 |
Number of auxiliary contacts as shutter | 1 |
Number of main contacts as opener | 0 |
Number of making contacts and main contacts | 3 |
Rated current [In] for the power loss specification | 37.8 ampere |
Rated reactive power with 400 V; 50 Hz | 25 kilovolt |
Type of actuation | AC |
Weight | 1.19300 LB |
