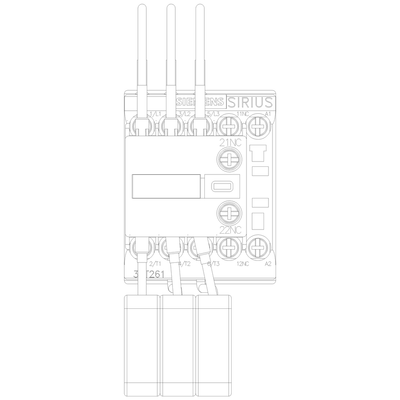

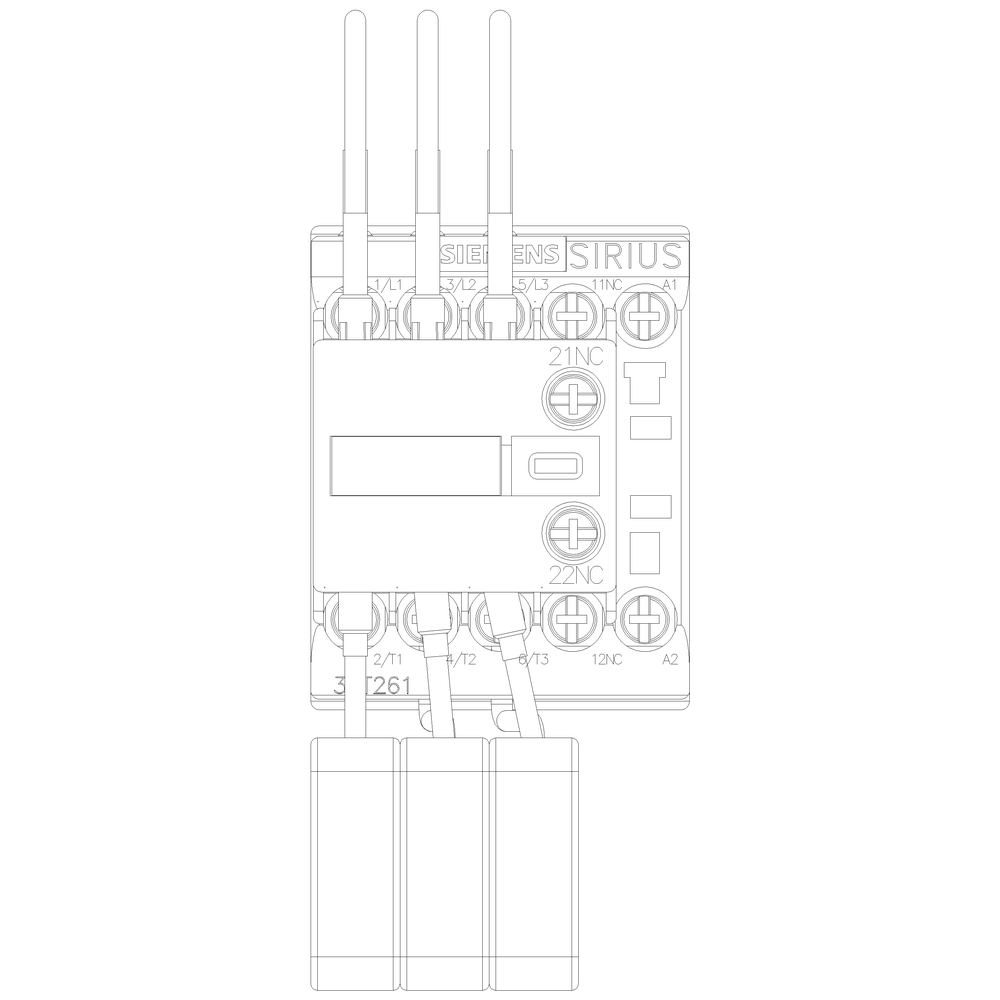

3RT26171AP05 | CAP CONTACTOR 12.5KVAR 230VAC 50/60HZ | Siemens Electrical

CONTACTOR,AC-6B, 12.5KVAR/400V, 2NC, 230 V AC, 50/60HZ, 3-POLE, SIZE S00 SCREW TERMINAL

Brand: Siemens ElectricalSKU: 3RT26171AP05

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT26171AP05

Item Number	3RT26171AP05
Brand	Siemens Electrical
Height	5.07900 IN
Length	5.21700 IN
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	0
Number of main contacts as normally open contact	3
Number of normally closed contacts as main contact	0
Rated blind power at 400 V; 50 Hz	12.5 kvar
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.70500 LB
Width	2.12600 IN
