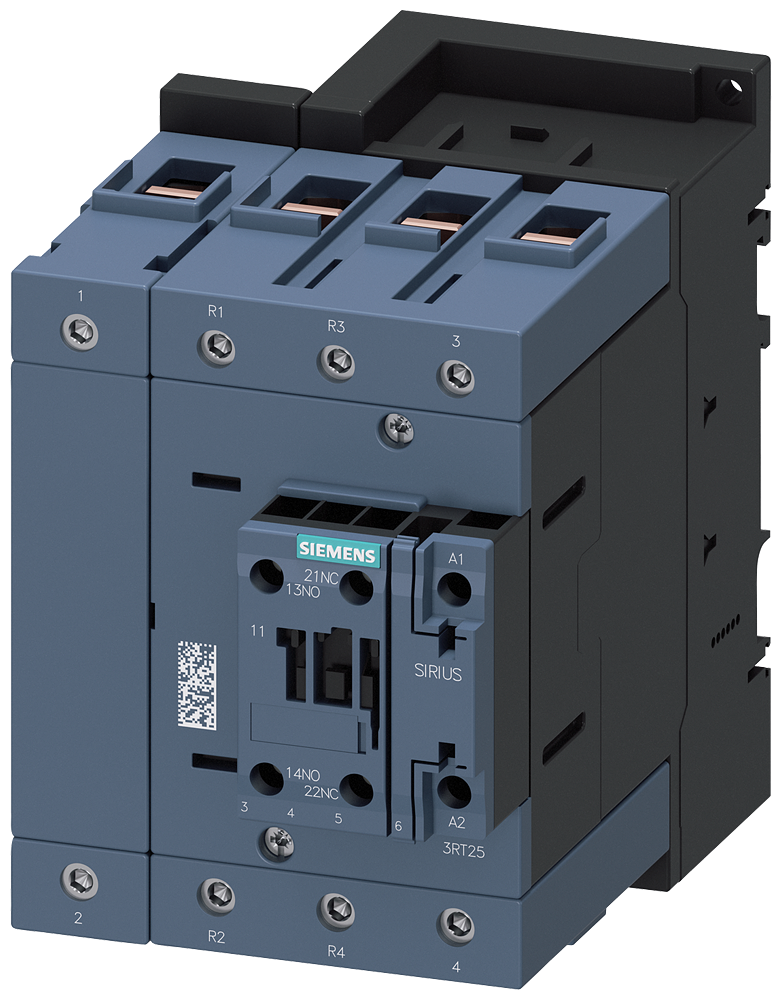

3RT25451AP00 | 2NO+2NC CONTACTOR.AC3:37KW. 230VAC 50HZ | Siemens Electrical

Power contactor. AC-3 80 A. 37 kW / 400 V 2 NO + 2 NC 230 V AC/50 Hz 4-pole Size S3 screw terminals 1 NO + 1 NC integrated

Brand: Siemens ElectricalSKU: 3RT25451AP00

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT25451AP00

Item Number	3RT25451AP00
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Rated operation current Ie at AC-1; 400 V	125 A
Rated operation current Ie at AC-3; 400 V	80 A
Rated operation power at AC-3; 400 V	37 kW
Rated operation power NEMA	22.064962499 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	4.40800 LB
