3RT25451AL20 | 2NO+2NC CONT. | AC3:37KW | 230VAC 50/60HZ | Siemens Electrical

Power contactor, AC-3 80 A, 37 kW / 400 V 2 NO + 2 NC 230 V AC, 50/60 Hz 4-pole Size S3 screw terminals 1 NO + 1 NC integrated

Brand: Siemens ElectricalSKU: 3RT25451AL20

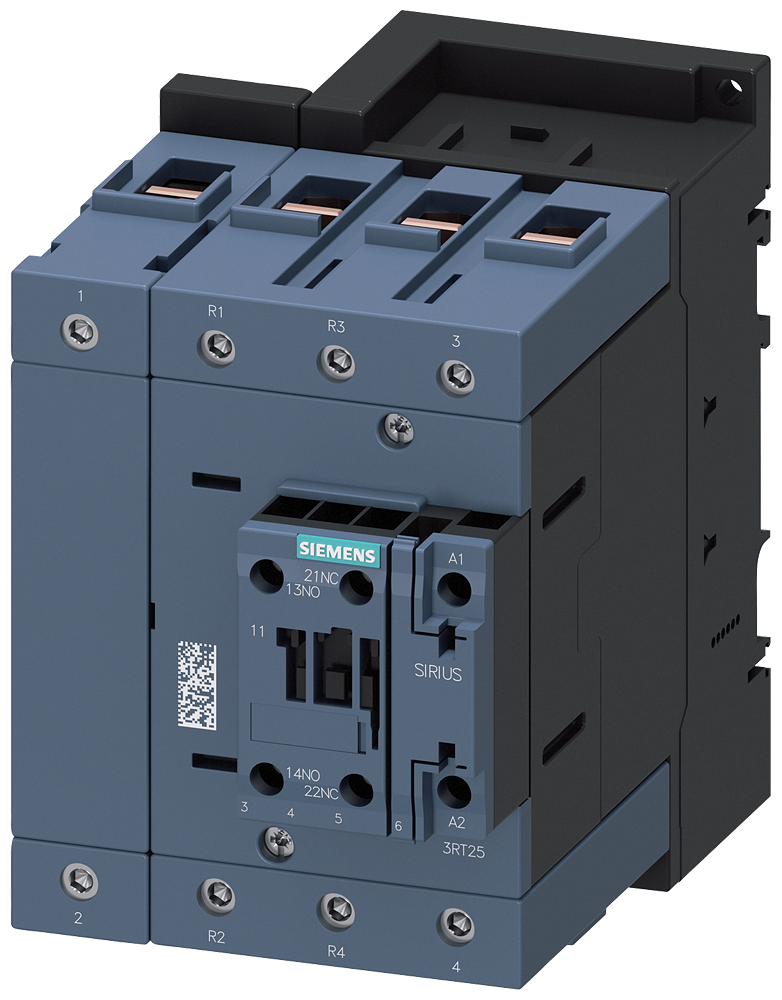

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT25451AL20

Item Number	3RT25451AL20
Brand	Siemens Electrical
Height	5.310 IN
Length	6.890 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Rated operation current Ie at AC-1; 400 V	125 A
Rated operation current Ie at AC-3; 400 V	80 A
Rated operation power at AC-3; 400 V	37 kW
Rated operation power NEMA	22.064962499 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	4.49700 LB
Width	5.710 IN
