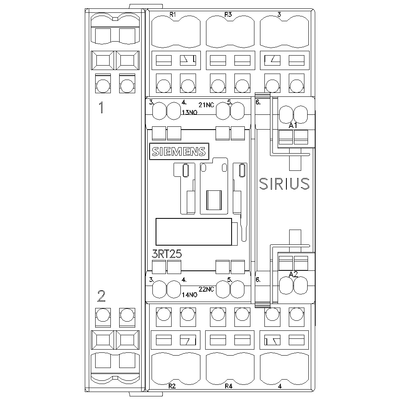

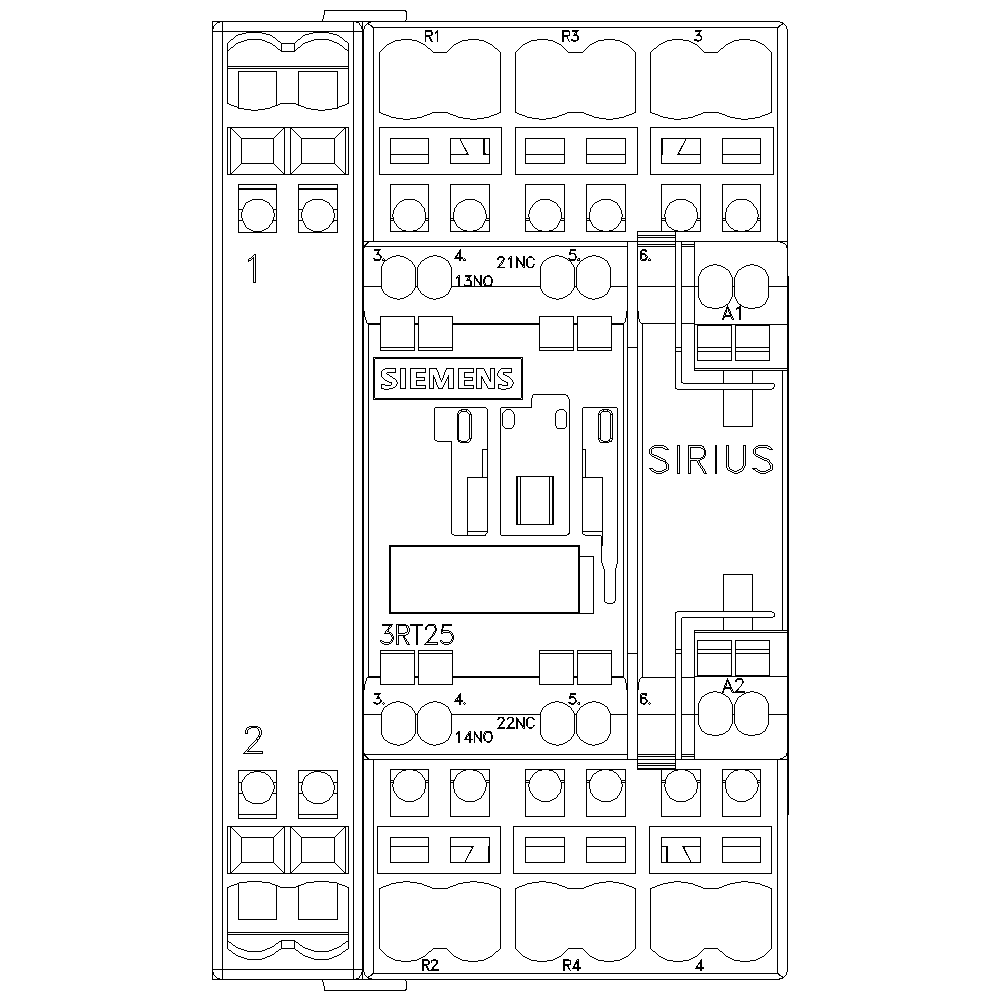

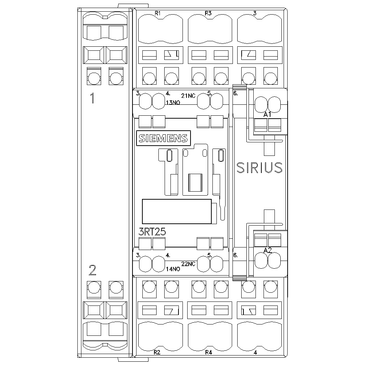

3RT25262AP60 | CONTACTOR S0 25A 240VAC 2NO/2NC SPRG | Siemens Electrical

CONT., AC-3, 11KW/400V, AC-1 40A, 1NO+1NC AC 220V 50HZ 240V 60 HZ, 4-POLE, 2NO+2NC, SZ. S0, SPRING-LOADED TERMINAL

Brand: Siemens ElectricalSKU: 3RT25262AP60

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT25262AP60

Item Number	3RT25262AP60
Brand	Siemens Electrical
Height	5.160 IN
Length	4.410 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	1.07800 LB
Width	3 IN
