3RT25261BJ80 | CONTACTOR S0 25A 72VDC 2NO/2NC SCRW | Siemens Electrical

CONT, AC3: 11KW DC 72V 4-PO 2NO+2NC

Brand: Siemens ElectricalSKU: 3RT25261BJ80

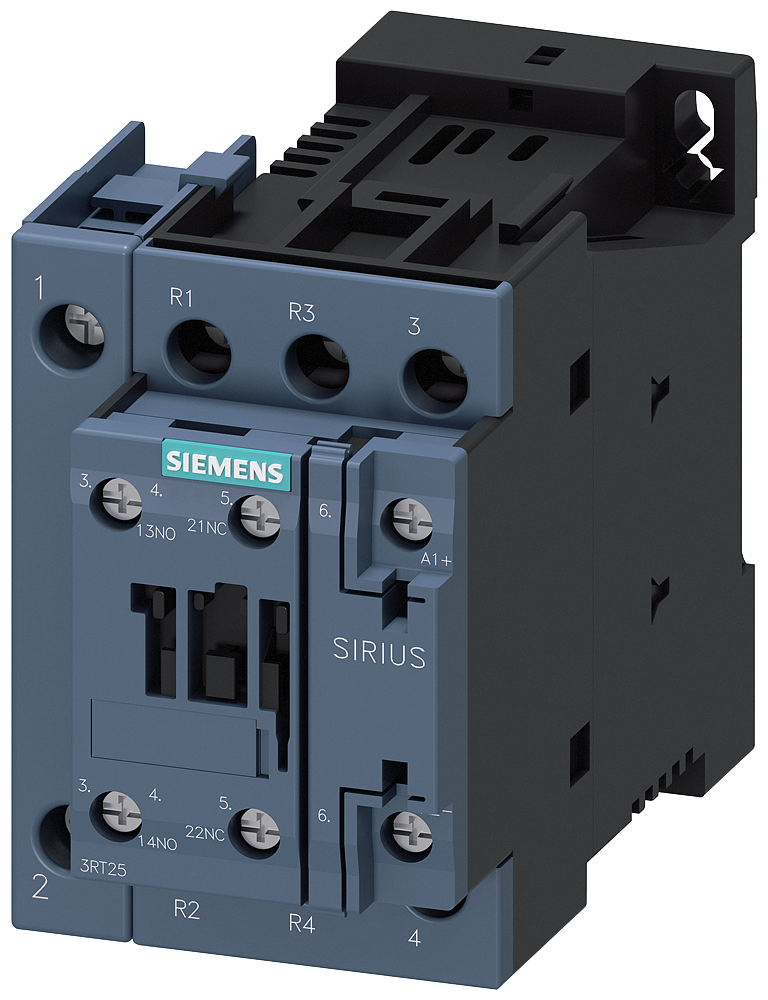

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT25261BJ80

Item Number	3RT25261BJ80
Brand	Siemens Electrical
Height	3.750 IN
Length	5.040 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Rated control supply voltage Us at DC	72 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	DC
Weight	1.27600 LB
Width	3.080 IN
