3RT25261AK60 | CONTACTOR S0 25A 120VAC 2NO/2NC SCRW | Siemens Electrical

CONTACTOR_AC 3RT2526-1AK60-3RT2526-1AK60_11kW_120V

Brand: Siemens ElectricalSKU: 3RT25261AK60

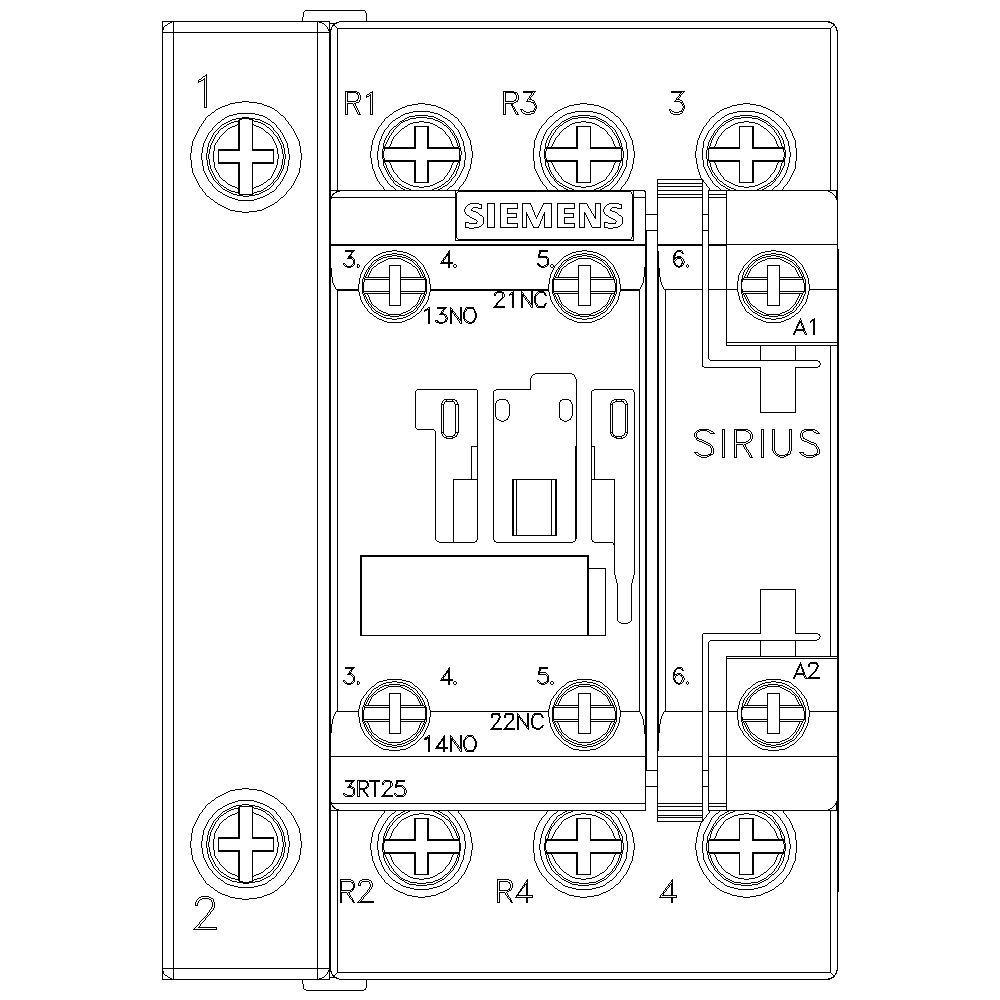

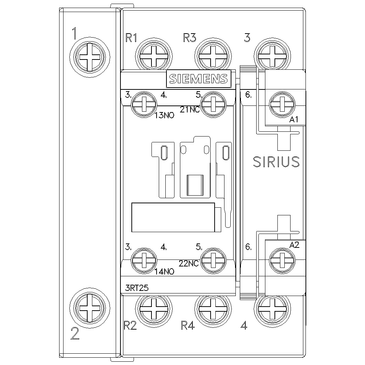

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT25261AK60

Item Number	3RT25261AK60
Brand	Siemens Electrical
Height	5.100 IN
Length	3.050 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	25 A
Rated operation power at AC-3; 400 V	11 kW
Rated operation power NEMA	11.032481249 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	1.06500 LB
Width	3.600 IN
