Documents: 3RT25261AG20
3RT25261AG20 | 4POL.CONTACTOR. AC3: 11KW. 110V 50/60HZ | Siemens Electrical
Contactor. AC-3. 11 kW/400 V 110 V AC/50/60 Hz 4-pole. 2 NO+2 NC. Size S0 Screw terminal 1 NO+1 NC integrated

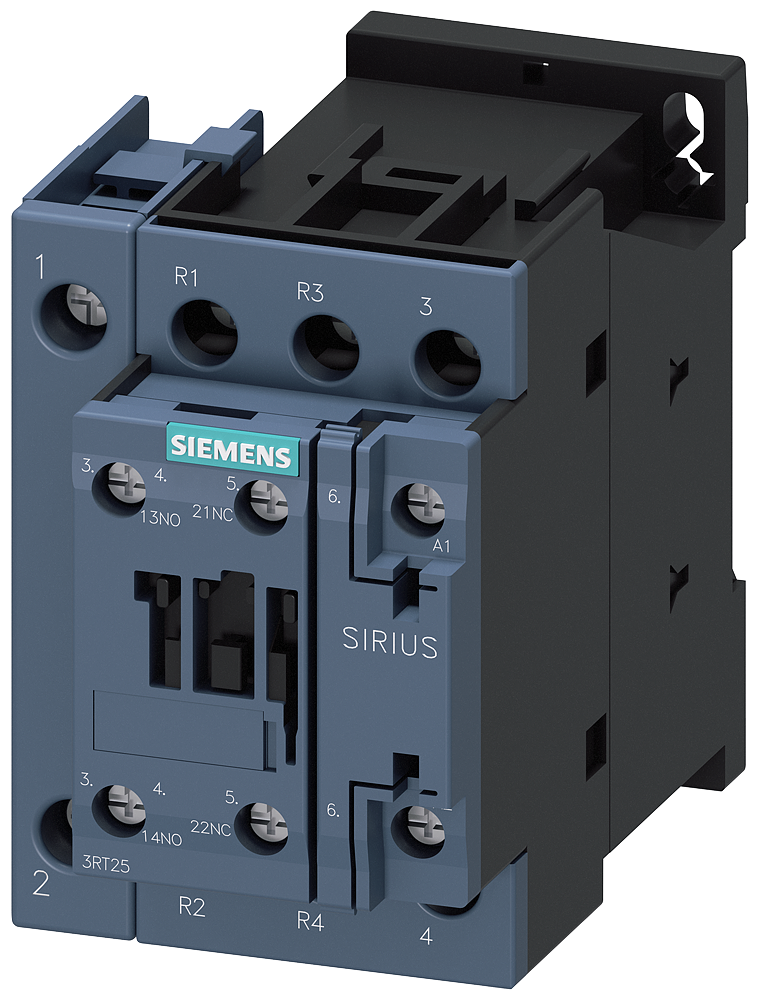

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT25261AG20
Overview Details for 3RT25261AG20
Specifications
Item Number | 3RT25261AG20 |
Brand | Siemens Electrical |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 2 |
Number of normally closed contacts as main contact | 2 |
Rated operation current Ie at AC-1; 400 V | 40 A |
Rated operation current Ie at AC-3; 400 V | 25 A |
Rated operation power at AC-3; 400 V | 11 kW |
Rated operation power NEMA | 11.032481249 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 1.03700 LB |
