Documents: 3RT25181AK60
3RT25181AK60 | CONTACTOR S00 16A 120VAC 2NO/2NC SCRW | Siemens Electrical
Cont., AC-3, 7.5KW/400V AC-1 22a, AC 110v 50HZ/120v 60HZ, 4-pole, 2s+2oe, size s00, screw terminals

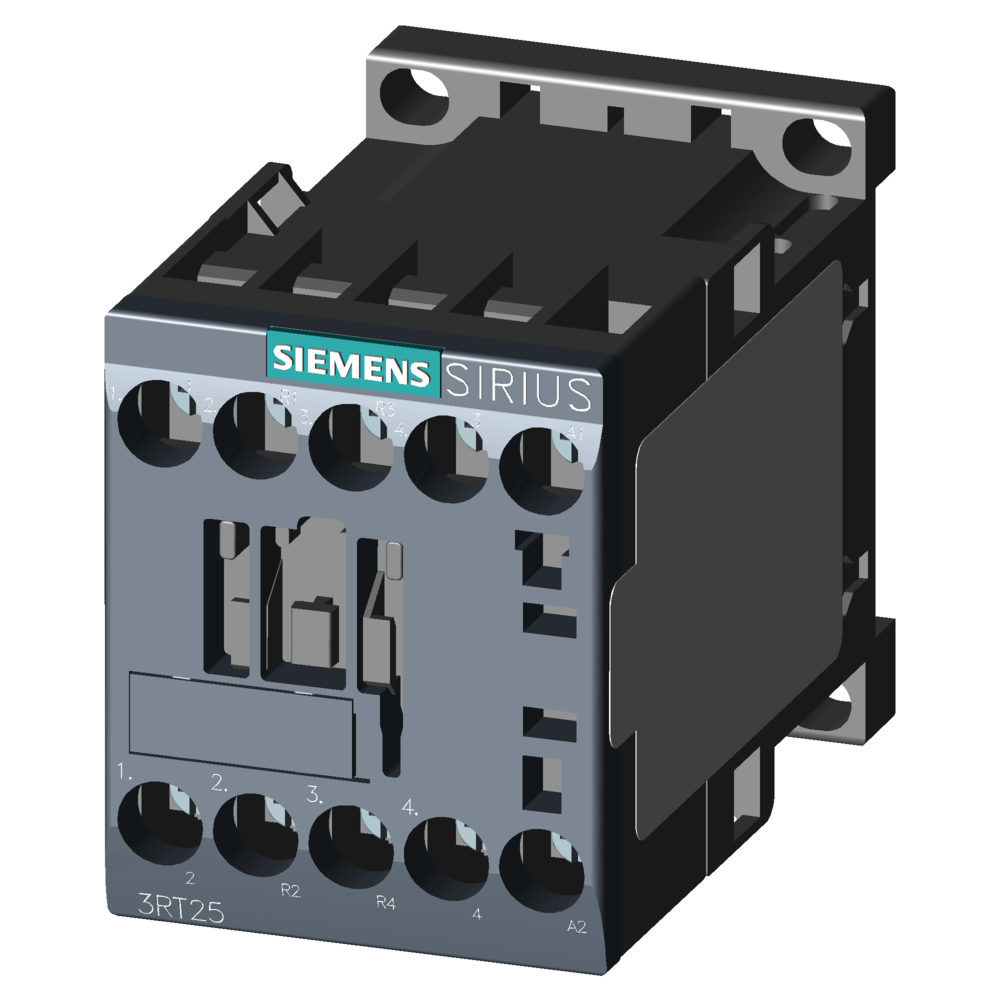

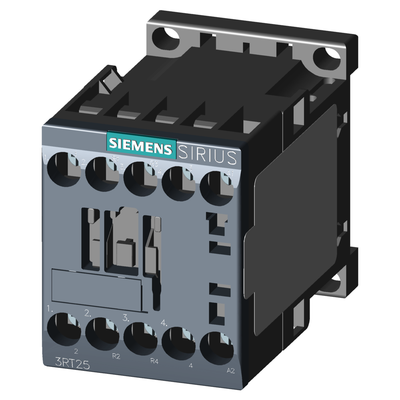

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT25181AK60
Overview Details for 3RT25181AK60
Specifications
Item Number | 3RT25181AK60 |
Brand | Siemens Electrical |
Height | 2.450 IN |
Length | 3.400 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 0 |
Number of auxiliary contacts as normally open contact | 0 |
Number of main contacts as normally open contact | 2 |
Number of normally closed contacts as main contact | 2 |
Rated operation current Ie at AC-1; 400 V | 22 A |
Rated operation current Ie at AC-3; 400 V | 16 A |
Rated operation power at AC-3; 400 V | 7.5 kW |
Rated operation power NEMA | 3.677493749 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | AC |
Weight | 0.51500 LB |
Width | 2.200 IN |
