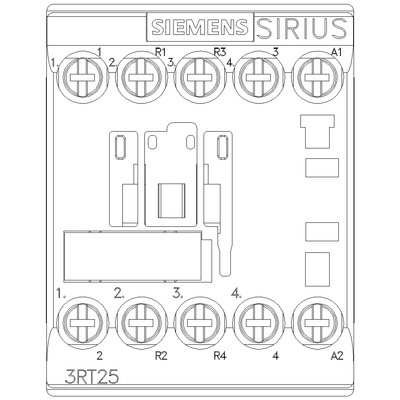

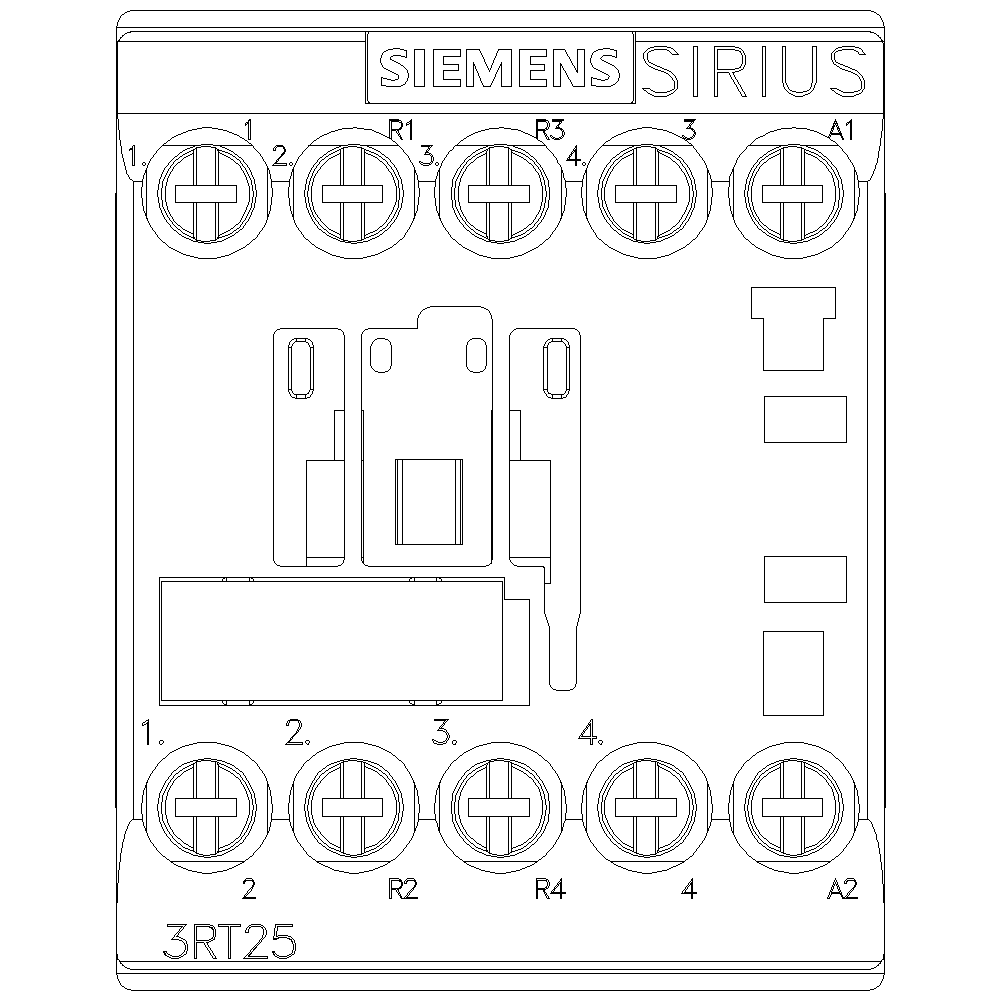

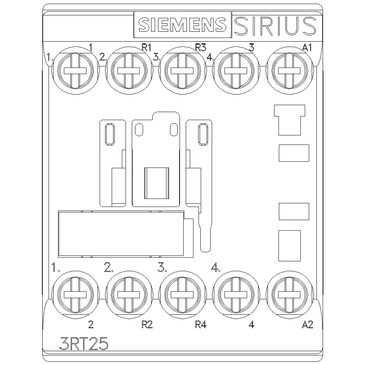

3RT25171AP60 | CONTACTOR S00 12A 240VAC 2NO/2NC SCRW | Siemens Electrical

Cont., AC-3, 5.5KW/400V, AC-1 22a, AC 220v 50HZ 240v 60 HZ, 4-pole, 2NO+2NC, sz s00, screw terminal

Brand: Siemens ElectricalSKU: 3RT25171AP60

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT25171AP60

Item Number	3RT25171AP60
Brand	Siemens Electrical
Height	3.080 IN
Length	2.450 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Rated operation current Ie at AC-1; 400 V	22 A
Rated operation current Ie at AC-3; 400 V	0
Rated operation power at AC-3; 400 V	5.5 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.48400 LB
Width	1.970 IN
