Documents: 3RT25161BF40
3RT25161BF40 | CONTACTOR S00 9A 110VDC 2NO/2NC SCRW | Siemens Electrical
CONT., AC-3, 4KW/400V, AC-1 18A, DC 110V, 4-POLE, 2S+2OE, SIZE S00, SCREW TERMINALS

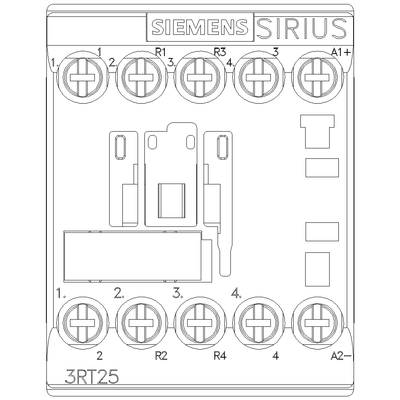

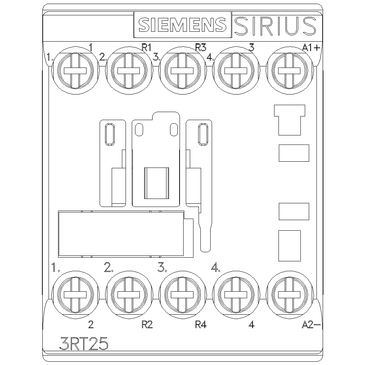

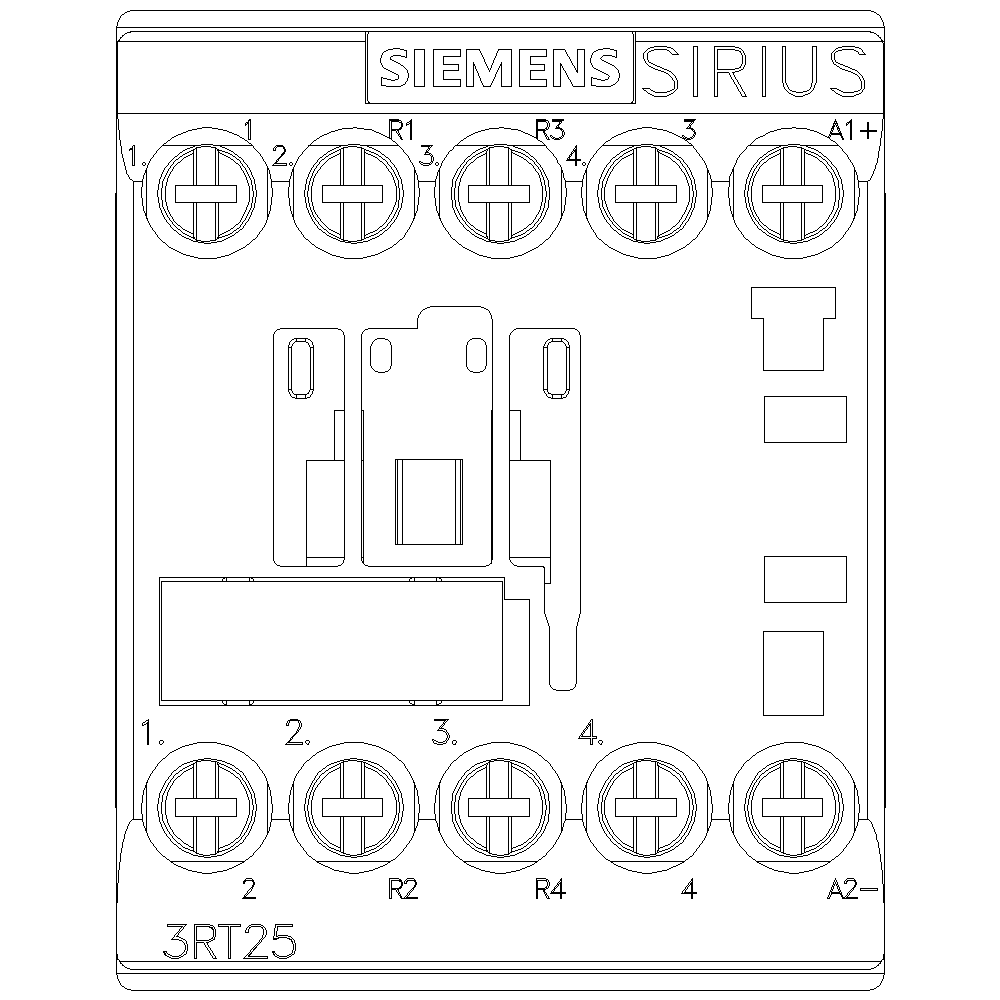

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT25161BF40
Overview Details for 3RT25161BF40
Specifications
Item Number | 3RT25161BF40 |
Brand | Siemens Electrical |
Height | 3.080 IN |
Length | 2.450 IN |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 0 |
Number of auxiliary contacts as normally open contact | 0 |
Number of main contacts as normally open contact | 2 |
Number of normally closed contacts as main contact | 2 |
Rated control supply voltage Us at DC | 110 V |
Rated operation current Ie at AC-1; 400 V | 18 A |
Rated operation current Ie at AC-3; 400 V | 0.375 |
Rated operation power at AC-3; 400 V | 4 kW |
Rated operation power NEMA | 3.677493749 kW |
Type of electrical connection of main circuit | Screw connection |
Voltage type for actuating | DC |
Weight | 0.61600 LB |
Width | 1.970 IN |
