3RT25161AH00 | 4POL.CONTACTOR. AC3: 4KW. 48V 50HZ | Siemens Electrical

Contactor. 2NO + 2NC. AC-3. 4 kW 48 V AC. 50 Hz. 4-pole. 2NO + 2NC. Size S00. Screw terminal

Brand: Siemens ElectricalSKU: 3RT25161AH00

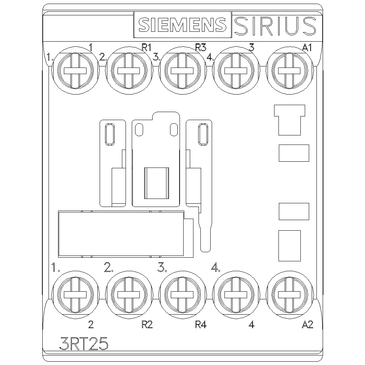

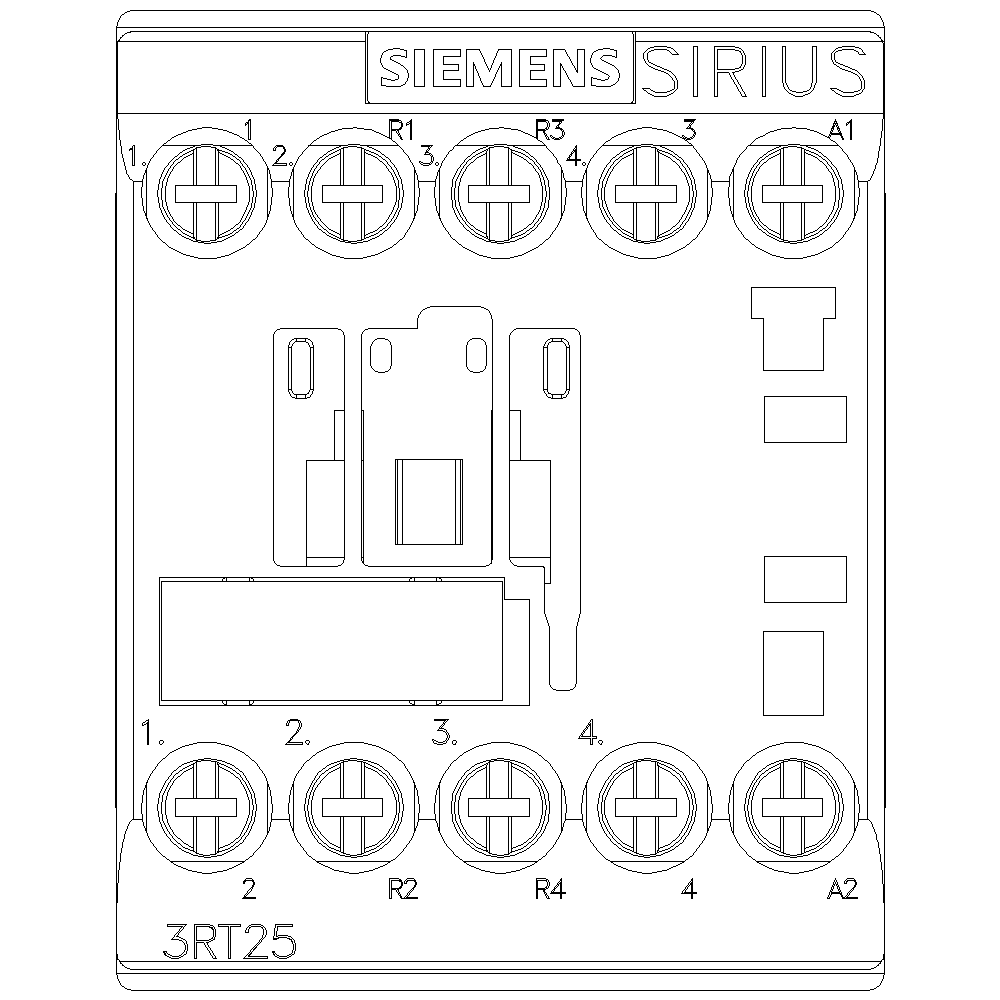

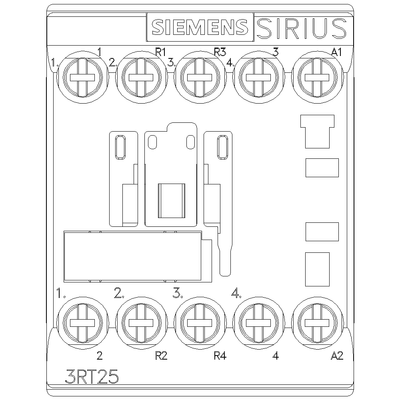

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT25161AH00

Item Number	3RT25161AH00
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of main contacts as normally open contact	2
Number of normally closed contacts as main contact	2
Rated operation current Ie at AC-1; 400 V	18 A
Rated operation current Ie at AC-3; 400 V	0.375
Rated operation power at AC-3; 400 V	4 kW
Rated operation power NEMA	3.677493749 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	0.50100 LB
