Documents: 3RT24481AL20
3RT24481AL20 | CONTACTOR.AC1:160A. 230VAC 50/60HZ | Siemens Electrical
Contactor. AC-1. 160 A/690 V/40 °C. S3. 3-pole. 230 V AC. 50/60 Hz. 1 NO+1 NC. box terminal/screw terminal

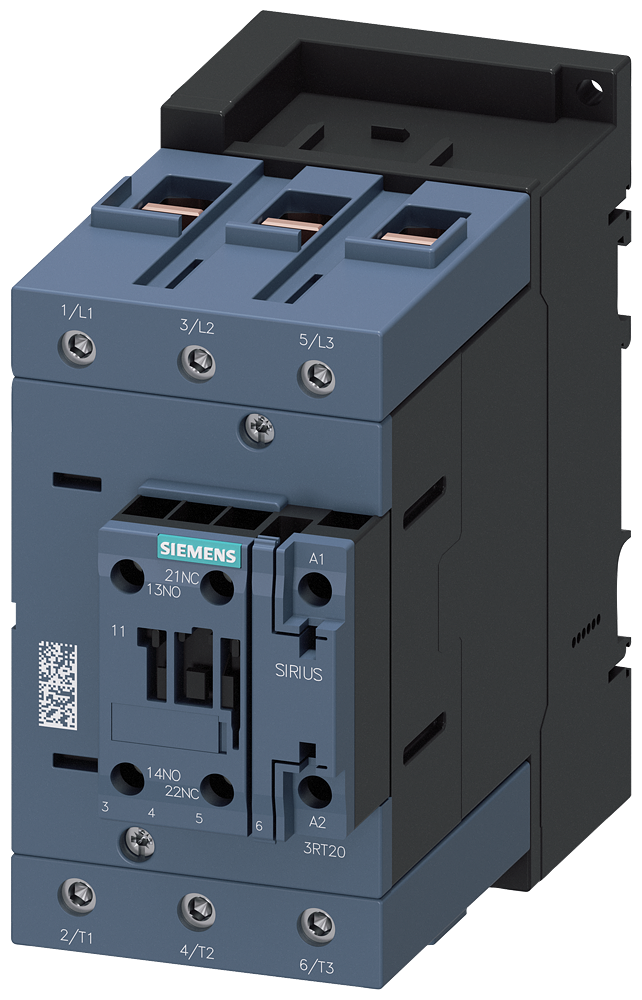

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT24481AL20
Overview Details for 3RT24481AL20
Specifications
Item Number | 3RT24481AL20 |
Brand | Siemens Electrical |
Modular version | TRUE |
Number of auxiliary contacts as normally closed contact | 1 |
Number of auxiliary contacts as normally open contact | 1 |
Number of main contacts as normally open contact | 3 |
Number of normally closed contacts as main contact | 0 |
Rated control supply voltage Us at AC 50HZ | 230 V |
Rated control supply voltage Us at AC 60HZ | 230 V |
Rated operation current Ie at AC-1; 400 V | 160 A |
Rated operation current Ie at AC-3; 400 V | 44 A |
Rated operation power NEMA | 29.419949999 kW |
Type of electrical connection of main circuit | Frame clamp |
Voltage type for actuating | AC |
Weight | 3.79200 LB |
