3RT23361AH20 | CONTACTOR RES S2 60A 4P 48VAC 1NO/1NC | Siemens Electrical

4NO CONTACTOR,AC1:60A 48V AC 50/60HZ, 4-POLE, 4NO, SIZE S2, SCREW TERMINAL 1NO+1NC INTEGRATED

Brand: Siemens ElectricalSKU: 3RT23361AH20

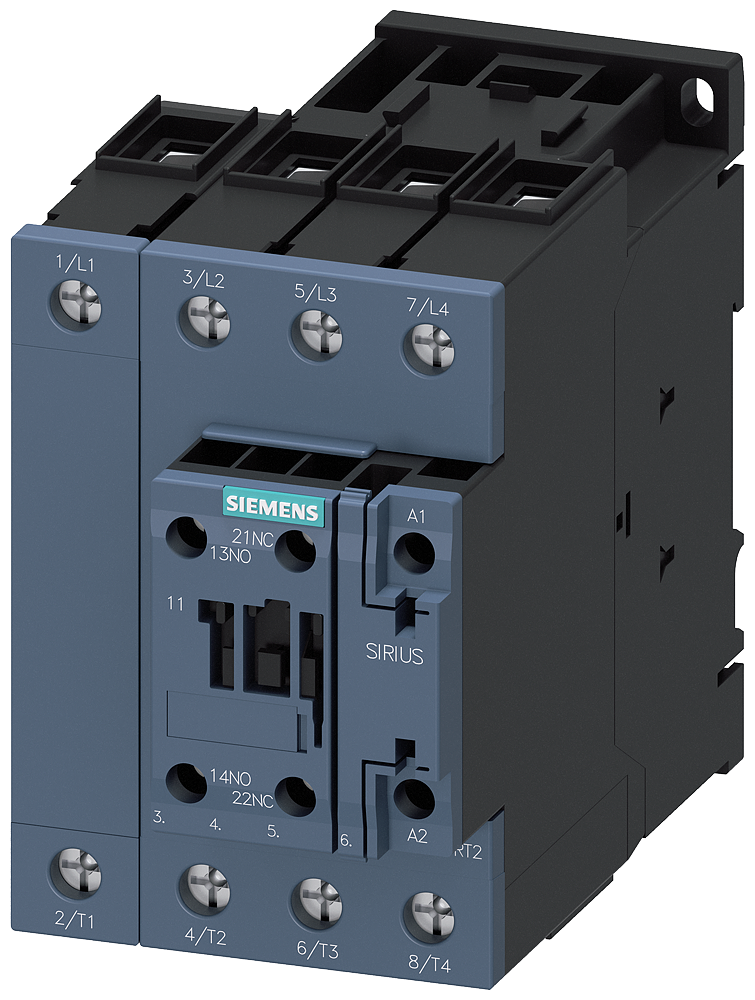

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT23361AH20

Item Number	3RT23361AH20
Brand	Siemens Electrical
Height	5.59100 IN
Length	4.82300 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	4
Rated control supply voltage Us at AC 50HZ	48 V
Rated control supply voltage Us at AC 60HZ	48 V
Rated operation current Ie at AC-1; 400 V	60 A
Rated operation current Ie at AC-3; 400 V	38 A
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	2.44700 LB
Width	3.22900 IN
