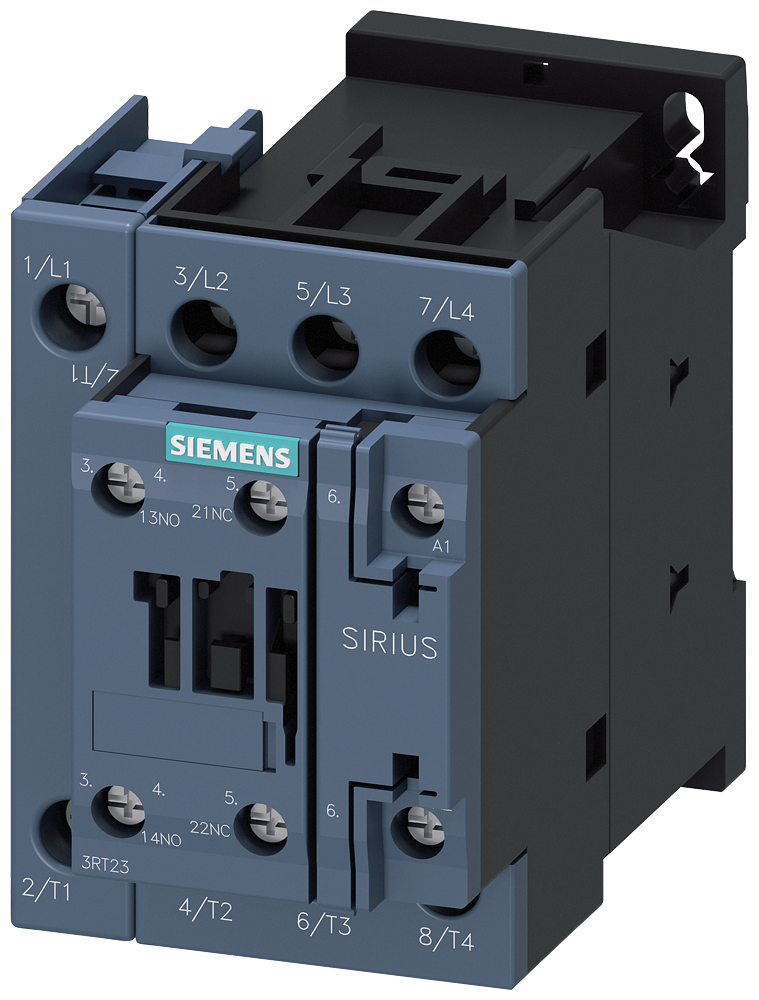

3RT23261AM20 | CONTACTOR RES S0 35A 208VAC 5NO/1NC SCRW | Siemens Electrical

4NO contactor. AC1 40a AC 208v 50/60HZ 4-pole. 4NO. sz s0. screw terminal 1NO+1NC integr.

Brand: Siemens ElectricalSKU: 3RT23261AM20

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT23261AM20

Item Number	3RT23261AM20
Brand	Siemens Electrical
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	4
Rated control supply voltage Us at AC 50HZ	208 V
Rated control supply voltage Us at AC 60HZ	208 V
Rated operation current Ie at AC-1; 400 V	40 A
Rated operation current Ie at AC-3; 400 V	15.5 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power at AC-4; 400 V	7.5 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	1.050 LB
