3RT23252CK60 | CONTACTOR RAIL S0 25A 72VDC 1NO/1NC SPRG | Siemens Electrical

4NO contactor, AC1 35a AC 110v 50HZ, 120v 60HZ 4-pole, 4NO, sz s0, spring-loaded terminal 1NO+1NC integr. .

Brand: Siemens ElectricalSKU: 3RT23252CK60

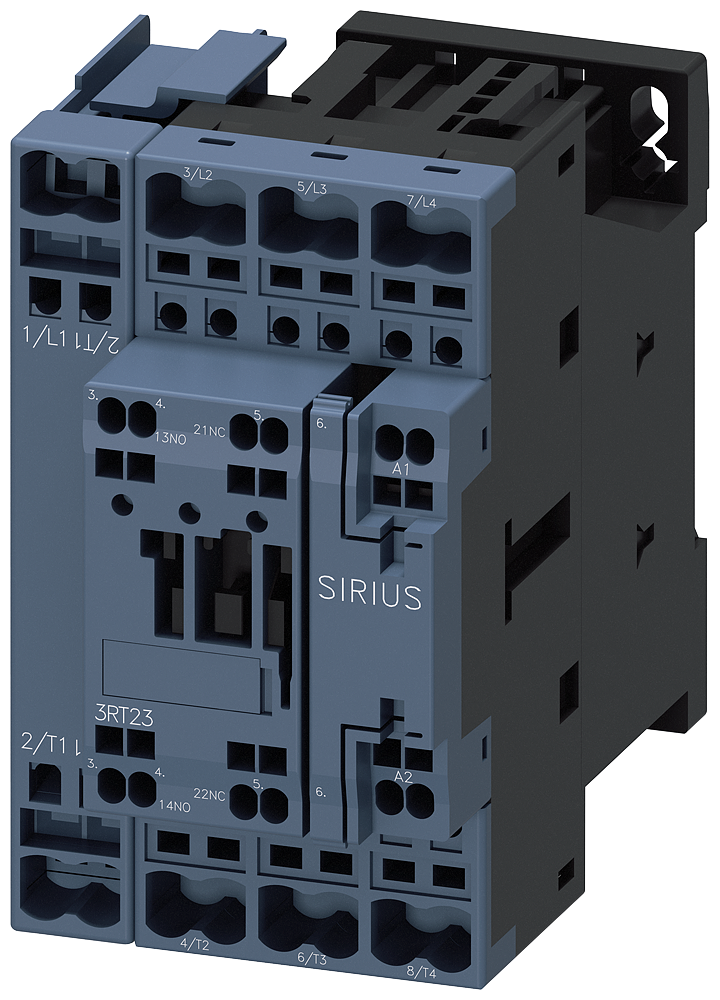

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT23252CK60

Item Number	3RT23252CK60
Brand	Siemens Electrical
Height	5.200 IN
Length	4.450 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	4
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	35 A
Rated operation current Ie at AC-3; 400 V	15.5 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power at AC-4; 400 V	7.5 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	AC
Weight	1.180 LB
Width	3.5 IN
