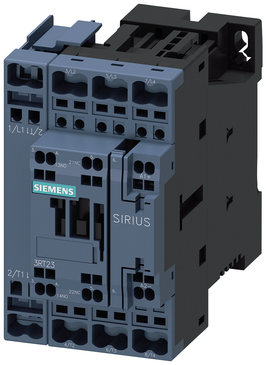

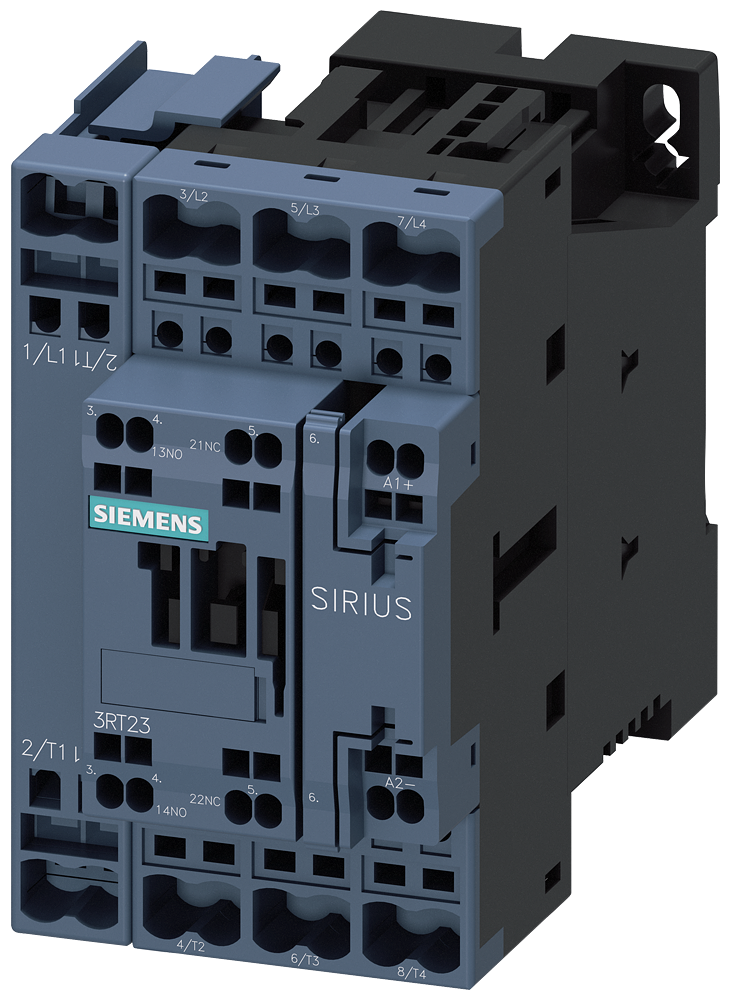

3RT23252BM40 | CONTACTOR RES S0 30A 220VDC 5NO/1NC SPRG | Siemens Electrical

CONT., AC-1, 22KW/400V, AC-1 35A, 1S+1OE, DC 220V, 4-POLE, 4S, SIZE S0, SPRING-TYPE TERM.

Brand: Siemens ElectricalSKU: 3RT23252BM40

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 3RT23252BM40

Item Number	3RT23252BM40
Brand	Siemens Electrical
Height	5.160 IN
Length	4.410 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	4
Rated control supply voltage Us at DC	220 V
Rated operation current Ie at AC-1; 400 V	35 A
Rated operation current Ie at AC-3; 400 V	15.5 A
Rated operation current Ie at AC-4; 400 V	15.5 A
Rated operation power at AC-3; 400 V	7.5 kW
Rated operation power at AC-4; 400 V	7.5 kW
Type of electrical connection of main circuit	Spring clamp connection
Voltage type for actuating	DC
Weight	1.49600 LB
Width	3 IN
